Home >> CLARION >> 28184 BG00B Service Manual

 0 item(s) in your cart

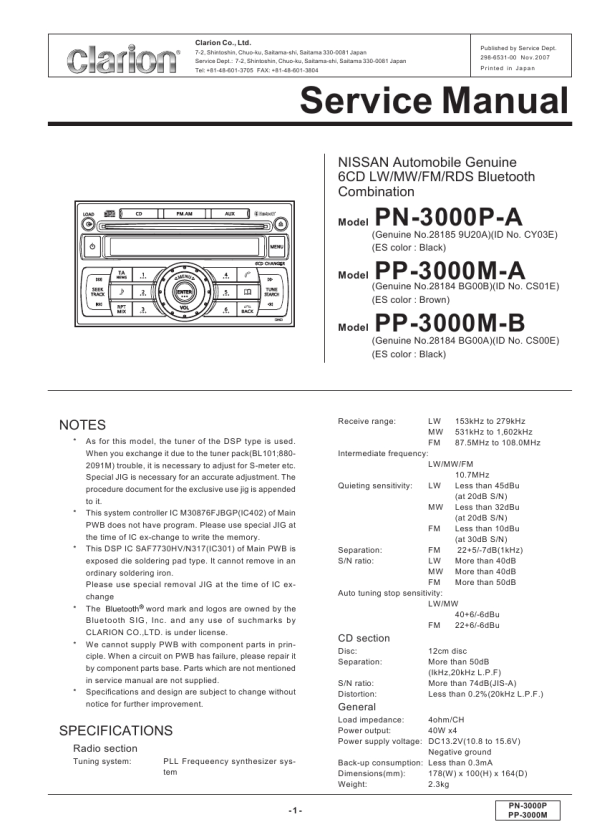

CLARION 28184 BG00B
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of CLARION 28184 BG00B Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 AD-WX200 AIWA Service Manual by Angelo Gallina;
I received a good service manual, with good resolution. Improve the instructions for the purchase because they are not well understood. For the rest, so good. Thanks Angel.
 2077 GRUNDIG Service Manual by Herman Wiegman;
Very good documentation for the Grundig 2077 model (as well as similar 800/900/1000 series radios). The first two pages are a summary of reception specifications and output capability. The third page is the tuner dial indicator and dial cord routing diagram. the final ~5 pages are the schematics for the various models (including 2077). The scan quality of the schematics are good, adn can be easily read if zoomed in. The documents are in German, not English as stated. It would have been nice to have the tuning sequence and settings, and some trouble shooting materials... or component and wiring map.
 CA537P VOLUME 2 SONY Service Manual by Johannes Zündel;
Perfect like it was descriped, Perfect like it was descriped
 SR-838 SANSUI Service Manual by John McKenna;
Very good detail, all pages clear, exactly what I needed
 TU-7700 SANSUI Service Manual by John McKenna;
Excellent service, and just what I needed to service my TU-7700. All pages of the manual are clear and easily readable.

Text excerpt from page 7 (click to view)
The cellular phone and Bluetooth cannot be connected.

Check enter in a set screen of the telephone

NG
Check the power of IC901 (Bluetooth module)

NG

Confirm to IC901 (Bluetooth module) IC502 (the power of 3.3V)

OK Confirm to IC901 (Bluetooth module) the circuit of Q101,102,104,105,106,107,108

OK
Check how to connect by inquiry from the cellular phone

NG

OK
Check the link of Bluettoth steady or the BT mark on

Confirm to IC901 (Bluetooth module) the circuit of Q101,102,104,105,106,107,108 ANT902 (Bluetooth module) Confirm to IC901 (Bluetooth module) the circuit of ANT902 (Bluetooth module)

NG

OK Confirm to connect Bluetooth with the cellular phone again

The receiving talk voice doesn't go out of the speaker.
Check connect it with the cellular phone

NG

Confirm to IC901 (Bluetooth module)

OK Check the sound of CD or radio OK
Check the call sound come to send it by telephone

Confirm to NG IC402 (DSP), IC501 (AMP), IC503 (Power AMP), J502 (Connector)

OK
Check the power of IC901 (Bluetooth module)

OK

NG

Confirm to the circuit of IC502 (the power of 3.3V) Confirm to the circuit of IC502 (the power of 3.3V) Confirm to the circuit of IC101 (CODEC) IC901 (Bluetooth module)

OK Check the power of IC101 (CODEC) OK Check the waveform of 9pin of IC101 OK
Check the waveform of 43pin of IC402(DSP)

NG

NG

NG

Confirm to the circuit of IC402 (DSP)

OK Confirm to the output of J502

-7-

PN-3000P PP-3000M
