Home >> CLARION >> 28185 CF50A Service Manual

 0 item(s) in your cart

CLARION 28185 CF50A
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of CLARION 28185 CF50A Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 ANUBIS A/AC PHILIPS Service Manual by Matteo Vannini;
FAST very good and clear a great unexpensive job!!! very recomended for all people who are preofessional or hobbists as me!!!!!!
 M-4318 BROTHER Service Manual by MaLi-Com It-Solutions;
Thank you very much for this Service Manual, it helped us a lot to repair the M-4318! ...BUT: The parts list is missing and the free parts katalog on web isn't complete, so now we don't know the part numbers of the defect parts :( We had to build them out of a working machine, and need the numbers to reorder the missing parts now.
 TAV710 SONY Service Manual by Bogdan Tudose;
Very good manual with clear electrical diagrams. Thanks owner-manuals.
 KP46S3 SONY Service Manual by Gaál Álmos;
Great manual, thank you, sony kp46s3 service manual perfectly, i am very happy.
 KA-D1100EX KENWOOD Service Manual by Nils Thei;
Complete original Service Manual in good (scan) quality!

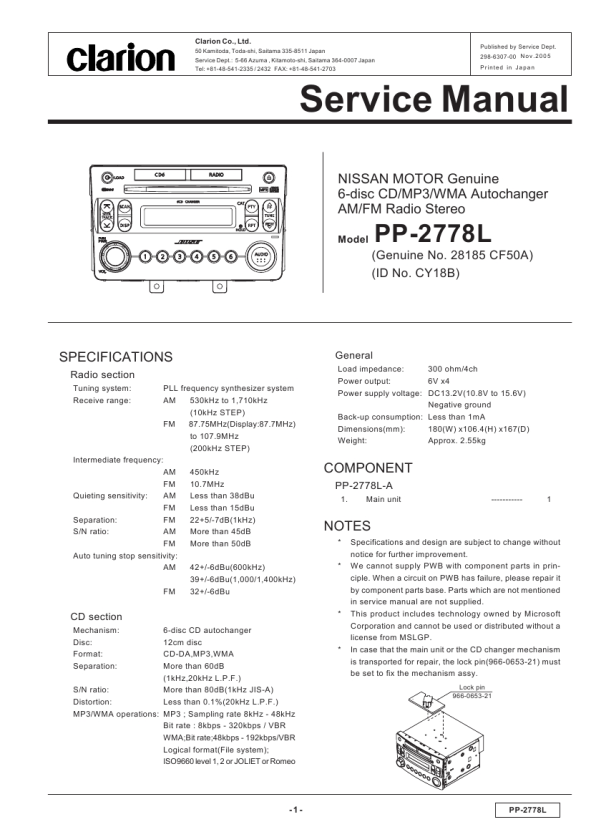

Text excerpt from page 1 (click to view)
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703

Published by Service Dept. 298-6307-00 Nov.2005 Printed in Japan

Service Manual
NISSAN MOTOR Genuine 6-disc CD/MP3/WMA Autochanger AM/FM Radio Stereo
Model

PP-2778L
(Genuine No. 28185 CF50A) (ID No. CY18B)

SPECIFICATIONS
Radio section
PLL frequency synthesizer system AM 530kHz to 1,710kHz (10kHz STEP) FM 87.75MHz(Display:87.7MHz) to 107.9MHz (200kHz STEP) Intermediate frequency: AM 450kHz FM 10.7MHz Quieting sensitivity: AM Less than 38dBu FM Less than 15dBu Separation: FM 22+5/-7dB(1kHz) S/N ratio: AM More than 45dB FM Auto tuning stop sensitivity: AM FM More than 50dB 42+/-6dBu(600kHz) 39+/-6dBu(1,000/1,400kHz) 32+/-6dBu Tuning system: Receive range:

General
Load impedance: 300 ohm/4ch Power output: 6V x4 Power supply voltage: DC13.2V(10.8V to 15.6V) Negative ground Back-up consumption: Less than 1mA Dimensions(mm): 180(W) x106.4(H) x167(D) Weight: Approx. 2.55kg

COMPONENT
PP-2778L-A
1. Main unit ----------1

NOTES
* * Specifications and design are subject to change without notice for further improvement. We cannot supply PWB with component parts in principle. When a circuit on PWB has failure, please repair it by component parts base. Parts which are not mentioned in service manual are not supplied. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from MSLGP. In case that the main unit or the CD changer mechanism is transported for repair, the lock pin(966-0653-21) must be set to fix the mechanism assy.
Lock pin 966-0653-21

CD section
Mechanism: Disc: Format: Separation: S/N ratio: 6-disc CD autochanger 12cm disc CD-DA,MP3,WMA More than 60dB (1kHz,20kHz L.P.F.) More than 80dB(1kHz JIS-A)

*

*

Distortion: Less than 0.1%(20kHz L.P.F.) MP3/WMA operations: MP3 ; Sampling rate 8kHz - 48kHz Bit rate : 8kbps - 320kbps / VBR WMA;Bit rate;48kbps - 192kbps/VBR Logical format(File system); ISO9660 level 1, 2 or JOLIET or Romeo

-1-

PP-2778L
