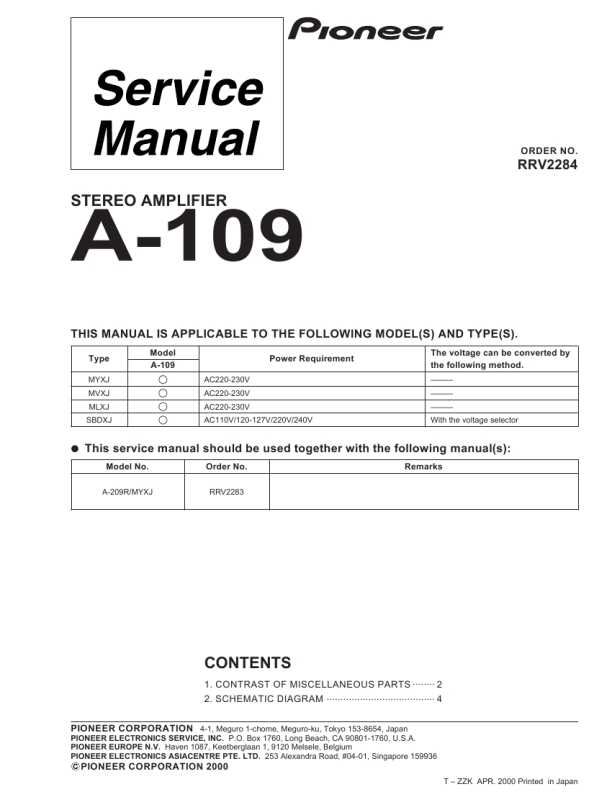

ORDER NO.
RRV2284
STEREO AMPLIFIER
A-109
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type
MYXJ MVXJ MLXJ SBDXJ
Model A-109
AC220-230V AC220-230V AC220-230V
Power Requirement
The voltage can be converted by the following method.
����� ����� ����� With the voltage selector
AC110V/120-127V/220V/240V
¶ This service manual should be used together with the following manual(s):
Model No.
A-209R/MYXJ
Order No.
RRV2283
Remarks
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ........ 2 2. SCHEMATIC DIAGRAM ....................................... 4
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
PIONEER CORPORATION 2000
T � ZZK APR. 2000 Printed in Japan
|
|
|
> |
|
