Text excerpt from page 10 (click to view)

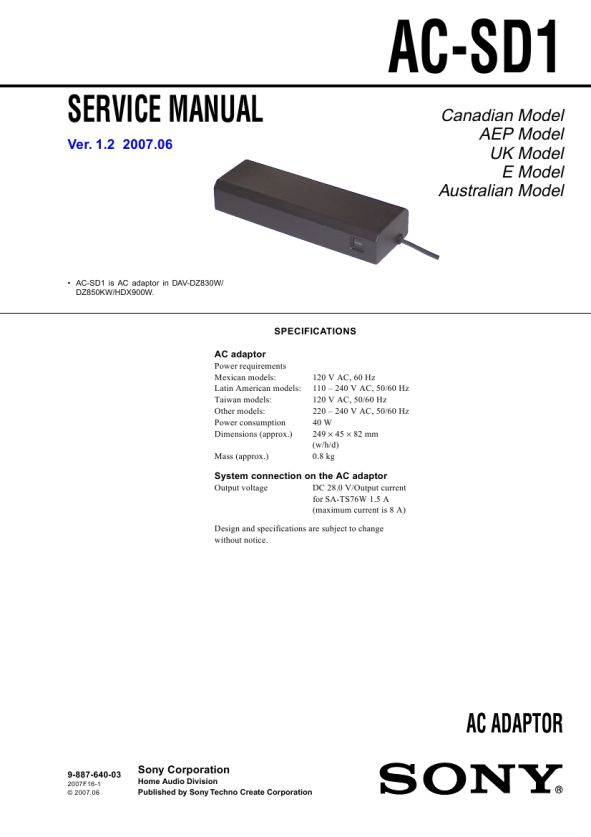

AC-SD1
REVISION HISTORY
Clicking the version allows you to jump to the revised page. Also, clicking the version at the top of the revised page allows you to jump to the next revised page. Ver. 1.0 1.1 1.2 Date 2007.04 2007.06 2007.06 New Addition of Korean, Mexican, and Taiwan models. Addition of Thai model Description of Revision
