Technische Daten
Verstärkerteil
Ausgangsleistung (stereo)
50 (max.)-Watt-Effectivwert pro Kanal; beide Kanäle unter 8 Ohm; Frequenz 20 Hz-20 kHz; Klirrfactor nich mehr als 0,9%
UKW-Empfangsteil
(Wenn nicht angegeben 100,1 MHz, 65 dBf)
Empfangsbereich:
87,5 MHz - 108,0 MHz (50-kHz-Schritte) MW-Dämpfungs Empfindlichkeit: 45 dB
Surround-Ausgangsleistung (0,9 % Klirrfactor, 1 kHz, 8 Ohm) :
30 + 30 Watt (vorne) 30 Watt (Center) 30 + 30 Watt (hinten)
Klirrfaktor (1 kHz): Mono : 0,4%
Stereo : 0,5%
Frequenzgang:
30 Hz - 15 kHz, +1/-1,5 dB
Klirrfactor (stereo) :
0,02% (80 Watt, 1 kHz)
Stereolanaltrennung (1 kHz): 40 dB Signal/Rausch-Abstand : Mono : 75 dB
Stereo : 70 dB
Vergögerungszeit :
DOLBY DIGITAL : hinten 0-15 ms Centre 0-5 ms DOLBY PRO LOGIC : hinten 15-30 ms
MW-Empfangsteil
Empfangsbereich:
522 Hz - 1.620 kHz (9 kHz-Schritte)
Audio-Eingangsempfindlichkeit/-impedanz :
*LINE : 250 mV/47 kOhm
Nutzbare Empfindlichkeit:
55 dB/m
Ausgangspegel/-impedanz :
VCR/TAPE, CDR/MD : 230 mV/2,2 kOhm
Klirrfaktor:
0,8% an 85 dB/m
Frequenzgang :
*LINE : 20 Hz - 65 kHz, +1/-3 dB
Signal/Rausch-Abstand:
45 dB an 85 dB/m
Signal/Rausch-Abstand :
*LINE : 85 dB (IHF-A)
Klangregelung :
Tiefen : +/-10 dB bei 100 Hz Höhen : +/-10 dB bei 10 Hz
Allgemein
Spannungsversorgung:
230 V Wechselspannung, 50 Hz Leistungsaufnahme: 260 Watt Abmessungen (BxHxT) : 215 x 143 x 388 Gewicht (netto) : 7,6 kg
Digital-Audio-Teil
Abtastfrequenz :
32 kHz, 44,1 kHz, 48 kHz Koaxial : 0,5 Vp-p/75 Ohm Optish : -15 dBm bis �21 dBm
DIGITAL Eingangspegel/-impedanz :
Mitgeliefertes Zubehör:
MW-Rahmenantenne x 1 UKW-Dipolantenne x 1 Fernbedieneinheit (RC-821) x 1
Videoteil
Eingangsempfindlichkeit/-impedanz :
1,0 Vp-p/75 Ohm 1,0 Vp-p/75 Ohm
* LINE bedeuted : VCR/TAPE IN, DVD IN, SAT/AUX IN, CDR/MD PLAY und CD IN. < �nderungen der Konstruktion und der technischen Daten jederzeit ohne Vorankündigung vorbehalten. < Die Abbildungen können leicht vom hergestellten Modell abweichen.
Ausgangspegel/-impedanz :
DEUTSCH
75

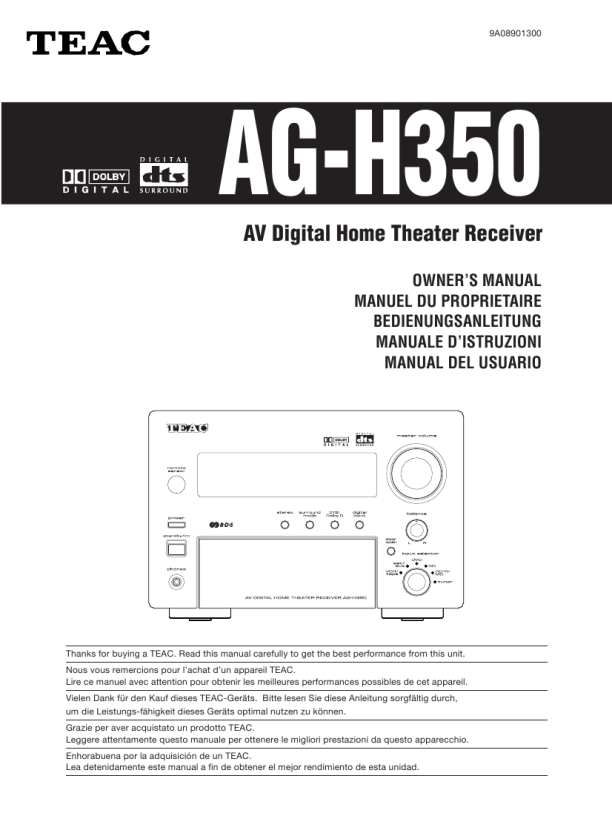

 $4.99 AGH350 TEAC
