- TECHNICAL DATA
- MECHANISM ADJUSTMENTS
- CLASSIFICATION OF VARIOUS P.C BOARDS
- P.C BOARD TITLES AND IDENTIFICATION NUMBERS
- COMPOSITION OF VARIOUS P.C BOARDS

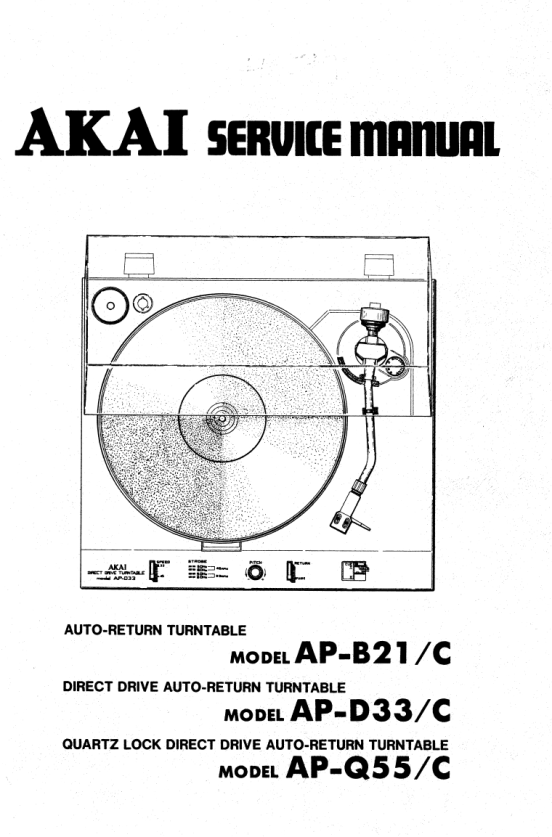

- SECTION 1 MODEL AP - B21/C SERVICE MANUAL
- SECTION 2 MODEL AP - D33/C and AP - Q55/C SERVICE MANUAL
- SECTION 3 PARTS LIST
- SECTION 4 SCHEMATIC DIAGRAM
- TECHNICAL DATA
- MODEL AP - D33/C
- MODEL AP - Q55/C
- DISMANTLING OF UNIT
- CONTROLS
- MODEL AP - D33/C
- MODEL AP - Q55/C
- PRINCIPAL PARTS LOCATION
- MODEL AP - D33/C
- MODEL AP - Q55/C
- VOLTAGE AND CYCLE CONVERSION
- MECHANICAL ADJUSTMENTS
- STYLUS PRESSURE ADJUSTMENT
- OVERHANG ADJUSTMENT
- AUTO - RETURN ADJUSTMENT
- ARM LIFTER ADJUSTMENT
- RETURN PLUNGER INSTALLATION POSITION ADJUSTMENT
- ELECTRICAL ADJUSTMENTS
- MODEL AP - D33/C
- MODEL AP - Q55/C
- CLASSIFICATION OF VARIOUS P.C BOARDS
- P.C BOARD TITLES AND IDENTIFICATION NUMBERS
- MODEL AP - D33/C COMPOSITION OF VARIOUS P.C BOARDS
- MODEL AP - Q55/C COMPOSITION OF VARIOUS P.C BOARDS
- MODEL AP - B21/C
- ASSEMBLY BLOCK
- MODEL AP - D33/C
- D.D SERVO P.C BOARD (APD - 3313A) BLOCK
- FUSE P.C BOARD (APD - 3052/3062/3063/3319) BLOCK
- ASSEMBLY BLOCK (1)
- ASSEMBLY BLOCK (2)
- FINAL ASSEMBLY BLOCK
- MODEL AP - Q55/C
- QUARTZ SERVO P.C BOARD (APQ - 5506A) BLOCK
- FUSE P.C BOARD (APD - 3052/APQ - 5014/APQ - 5016/APQ - 5017) BLOCK
- ASSEMBLY BLOCK (1)
- ASSEMBLY BLOCK (2)
- FINAL ASSEMBLY BLOCK
- MODEL AP - B21/C
- MODEL AP - D33/C
- MODEL AP - Q55/C
- Resistor and Capacitor which is not Listed in this Parts List, Please Refer to COMMON LIST FOR SERVICE PARTS
- SCHEMATIC DIAGRAM ICs
- AP - B21/C NO. 1620658A SCHEMATIC DIAGRAM
- AP - D33/C NO. 1620660A SCHEMATIC DIAGRAM
- AP - Q55/C NO. 1620661A SCHEMATIC DIAGRAM
