2-2. BKLE-102
2-2-9. KY-346 Board
1. Remove the arm assembly, and then open the panel. (Refer to �1-3. Removal of Cabinet�.) 2. Disconnect the five connectors (CN1, CN2, CN4, CN5 and CN6). 3. Remove the ten screws and remove the KY-346 board.
3. Remove the KY-346 board. (Refer to �2-2-9. KY-346 Board�.) 4. Remove the twelve screws and remove the chassis.
Chassis BVWH3 � 8
BVWH3 � 8 CN4 BVWH3 � 8 CN1 CN2 CN6 KY-346 board CN5 BVWH3 � 8 BVWH3 � 8
5. Remove the three screws and remove the search dial assembly.
4. Install the new KY-346 board in the reverse order of steps 1 through 3.
Search dial assembly
2-2-10. Search Dial Assembly
1. Remove the rubber dial knob. 2. Remove one screw and remove the dial knob.
BV3 � 8
Rubber dial knob
PWH2.6 � 5
6. Install the new search dial assembly in the reverse order of steps 1 through 5.
Dial knob
2-8(E)

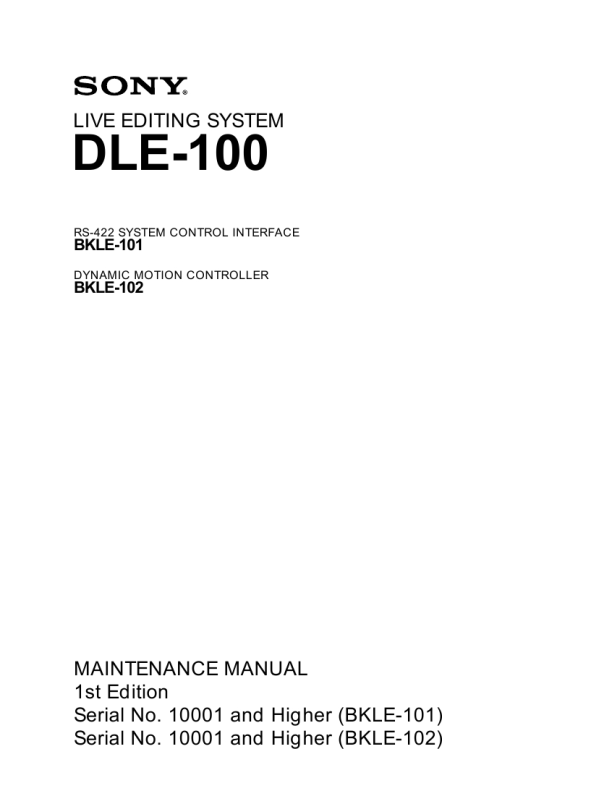

DLE-100
|
|
|
> |
|
