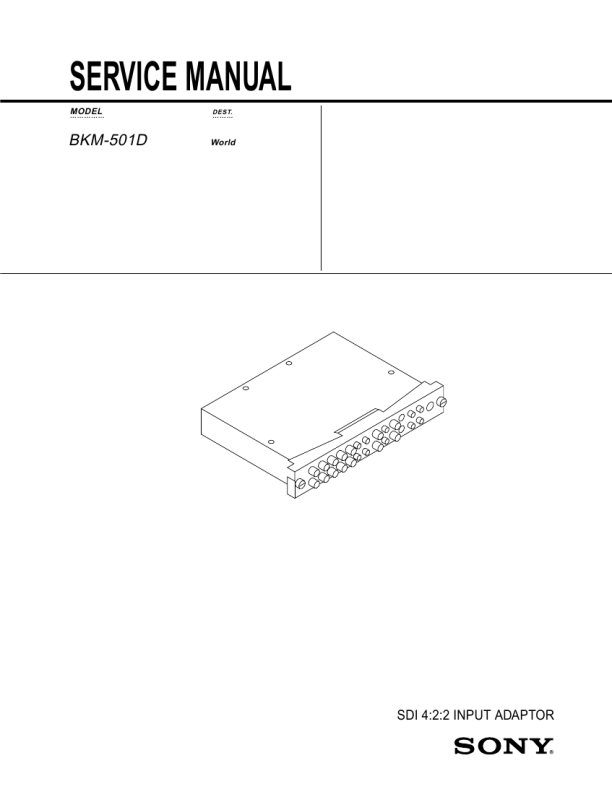

1-4 BKM-501D
Location and Function of Parts and Controls
Connection
Before you get started � First make sure that the power to each piece of equipment is turned off. � Use connecting cables suitable for the equipment to be connected. � The cable connectors should be fully inserted into the jacks. A loose connection may cause hum and other noise. � To disconnect the cable, pull out by grasping the plug. Never pull the cable itself. � Read the instruction manual of the equipment to be connected.
3 LINE IN connectors VIDEO IN (BNC-type): Connect to the composite video signal output of the video equipment. Y/C IN (Mini DIN 4-pin): Connect to the Y/C signal output of the video equipment. AUDIO IN (L/R) (phono type): Connect to the audio output of the video equipment. Connect to the channel L when the audio signal is monaural. 4 RGB1 OUT connectors These connectors are used as loop-through outputs of the RGB1 IN connectors 1. When the plug is connected to the RGB OUT connectors, the 75-ohms termination of the RGB IN connectors is released, and the signal input to the RGB IN connectors is output from the these connectors. R (R-Y)/G (Y)/B (B-Y) OUT (BNC-type): Loopthrough outputs of the RGB IN connectors. Connect to the RGB signal or component (Y/B-Y/ R-Y) signal input of another monitor. HD/COMP OUT (BNC-type): Loop-through output of the HD/COMP IN connector. Connect to the H sync signal or composite sync signal input of another monitor. VD OUT (BNC-type): Loop-through output of the VD IN connector. Connect to the V sync signal input of another monitor.
Note
5 LINE OUT connectors These connectors are used as loop-through outputs of the LINE IN connectors 3. When the plug is connected to the VIDEO OUT connector or Y/C OUT jack, the 75-oms termination of the VIDEO IN connector or Y/C IN jack is released, and the signal input to the VIDEO IN or Y/C IN jack is output from the VIDEO OUT connector or Y/C OUT jack. VIDEO OUT (BNC-type): Connect to the composite video signal input of another monitor or video equipment. Y/C OUT (Mini DIN 4-pin): Connect to the Y/C signal input of another monitor or video equipment. AUDIO OUT (L/R) (phono type): Loop-through outputs of the AUDIO IN jacks. Connect to the audio inputs of another monitor or video equipment. 6 REMOTE (RS-232C) terminal (Mini DIN 8-pin) This connector is for a remote control using the RS232C protocol.
For more details, consult your authorized Sony dealer.
Connection Example
Computer Betacam SP video cassette recorder
to component or RGB signal to video output to audio output * to R(R-Y)/G(Y)/ B(B-Y), HD/COMP, VD IN output
IN
RGB 1
R R-Y
OUT
G Y
to audio output
The HD/COMP OUT and VD OUT connectors are high impedance outputs. When using these outputs, connect a monitor with high impedance sync input connector, or the picture might be oscillated or disappeared because of the sync signal level mismatch. AUDIO OUT (L/R) (phono type): Loop-through outputs of the AUDIO IN jacks. Connect to the audio inputs of another monitor.
7 POWER LED indicator This POWER LED indicator lights up in green when the monitor turns on. If the indicator flashes, see �Self-Diagnostic Function� on page 10 (GB).
B B-Y
HD/ COMP SYNC VD
* to R(R-Y)/G(Y)/ B(B-Y) IN
to AUDIO IN to SDI to video output VCR, laser disc player, game machine, etc. to Y/C or VIDEO IN
L
L AUDIO R
SDI (RGB 2)
to AUDIO IN to AUDIO IN
R
AUDIO IN
LINE
VIDEO
Y/C
L AUDIO R
to audio output
to AUDIO IN
IN
OUT
to audio output to video output
* cannot use at the same time.
Digital Betacam cassette recorder, etc.
6 (GB)
7 (GB)
|
|
|
> |
|
