This is a good quality scan of the original Service Manual from Nordmende, Germany. Contains the circuit diagram, PCB layout, adjust/tune instructions as well. It is NOT in English but in GERMAN language! That was quite right for my german friend from the lower east side in Berlin.
 ;
Received via e-mail this PDF manual is worth the money. This is a quality scan of a manual in excellent condition and is just as good as having the original manual in hand. I have later seen the original manual and it was printed in colour, but this particular manual is black & white but scan resolution is high end quality! All drawings and pictures are presented in great detail. So, nearly perfect score in my opinion.
If you own the turntable you also should own the manual!

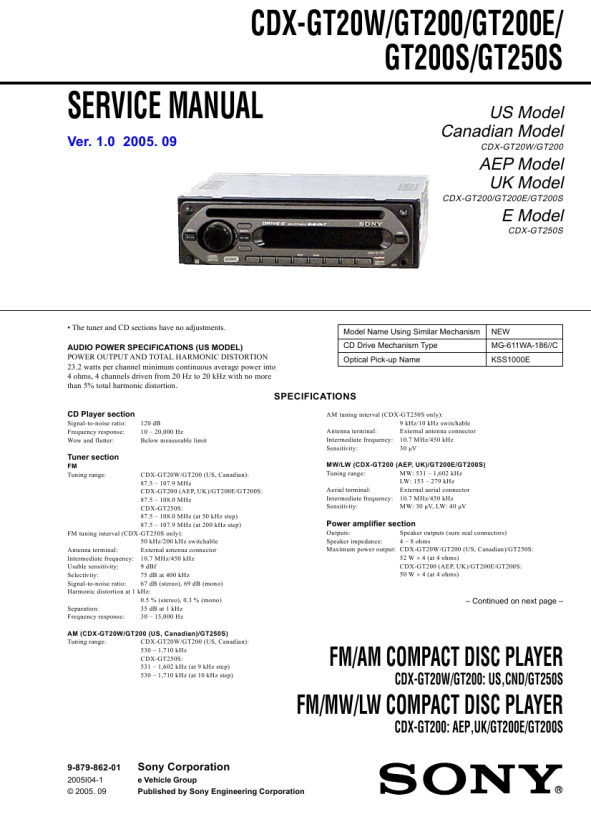

CDX-GT20W/GT200/GT200E/GT200S/GT250S
� CDX-GT250S
Location of controls and basic operations
Main unit
K SEEK �/+ buttons CD: To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); reverse/fastforward a track (press and hold). Radio: To tune in stations automatically (press); find a station manually (press and hold). L SOURCE button To power on; change the source (Radio/CD/ AUX).
CDX-GT250S
The following buttons on the card remote commander have also different buttons/functions from the unit. wa < (.)/, (>) buttons To control CD/Radio, the same as (SEEK) �/+ on the unit. ws VOL (volume) +/� button To adjust volume. wd ATT (attenuate) button To attenuate the sound. To cancel, press again. wf SEL (select) button To select items. wg M (+)/m (�) buttons To control CD, the same as (GP/ALBM) �/+ on the unit. wh Number buttons To receive stored stations (press); store sations (press and hold).
*1 When an ATRAC CD is played. *2 When an MP3/WMA is played.
M BTM button 8 To start the BTM function (press and hold). N MODE button 8 To select the radio band (FM/AM). O RESET button (located behind the front panel) 4 P Frequency select switch (located on the bottom of the unit) See �Frequency select switch� in the supplied installation/connections manual. Q Number buttons CD: (3): REP 8 (4): SHUF 8 (6): PAUSE To pause playback. To cancel, press again. Radio: To receive stored stations (press); store stations (press and hold). R SENS button To improve weak reception: LOCAL/ MONO. S Receptor for the card remote commander T AUX input jack 10 To connect a portable audio device.
Card remote commander RM-X151
Refer to the pages listed for details. The corresponding buttons on the card remote commander control the same functions as those on the unit. A OFF button To power off; stop the source. B Volume control dial/select button 9 To adjust volume (rotate); select setup items (press and rotate). C EQ3 (equalizer) button 9 To select an equalizer type (XPLOD, VOCAL, CLUB, JAZZ, NEW AGE, ROCK, CUSTOM or OFF). D Disc slot To insert the disc (label side up), playback starts. E Display window F Z (eject) button To eject the disc. G SCRL (scroll) button 8 To scroll the display item. H DSPL (display)/DIM (dimmer) button 4, 8 To change display items (press); change the display brightness (press and hold). I GP*1/ALBM*2 �/+ buttons To skip groups/albums (press); skip groups/ albums continuously (press and hold). J (front panel release) button 4
OFF
ATT
SOURCE
SEL
MODE
+
Note If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless (SOURCE) on the unit is pressed, or a disc is inserted to activate the unit first. Tip For details on how to replace the battery, see �Replacing the lithium battery of the card remote commander� on page 12.
�
DSPL
1 4 2 5
SCRL
3 6
+
VOL
�
6
7
6
|
|
|
> |
|
