For five bucks you can barely buy a hamburger. Or for the same five bucks you can buy a service manual. Much more useful. (and better for your health, depending on where you buy your hamburgers).
Yes, there are free manual sites out there, but if they don't have what you want, you have to pay.
And five bucks isn't much. Not for full specs, schematics and adjustment and parts replacement procedures.
My only criticism is that grayscale illustrations aren't well rendered, but I've seen worse.
Schematics and text are clear.
I'll be happy to purchase from here again.
Mike
mikeinthemountains@gmail.com
 ;
Impressively thorough. Even the simple operators manual helped me "fix" one of the 2 CD players in the unit. This unit reads CD's from the top so they should be installed in the magazines "upside down" from typical CD players. The CD player service manual helped me unjam a stuck carriage because somebody transported the box laying down loaded with CD's. A little lens cleaning & the player now works well! Thanks for you help at a great price! Joe
;
I was skeptical at first but later found the manual to be good quality for the price. It took a couple hours to receive the email with the download link, well worth the wait. Thanks.
;
very helpful, I could not have cleaned motherboard and replaced the main fan without it
;
Good manual, schematics nice and clear with good quality scanning. Woul dhave been nice to have immediate access after purchasing though.
SECTION 3 ADJUSTMENTS
� Landing Rough Adjustment
1. Enter the full white signal. (or the full black dots signal) 2. Set the contrast to �CONT�=MAX. 3. Make the screen monogreen. Note: Off the outputs from R ch and B ch of SG. 4. Reverse the DY, and adjust coarsely the purity magnet so that a green raster positions in the center of screen. 5. Adjust the "H.CENTER" with the H CENTER Volume .(RV502 on the D board) 6. Moving the DY forward, adjust so that an entire screen becomes monogreen. 7. Adjust the tilt of DY, and fix lightly with a clamp. Note: �TILT� shall be set at 0 5. Attach the wobbling coil to the designated part of the CRT neck. 6. Attach the sensor of the landing adjustment unit on the CRT surface.
Purity Magnet
<<Zero Position>>
Purity magnet position
L/D control specification
±5 ±5 ±4 ±5 ±5 ±5 ±5 ±5 ±5 ±4
� Landing Fine Adjustment
1. Put the set inside the Helmholtz coil. 2. Set the TLH to the Zero position. 3. Receive the single green signal. 4. Demagnetize the CRT surface with the hand degausser , and perform auto degaussing.
7. Adjust the DY position and purity, and the DY tilt. 8. Fasten DY with screw. Note:Torque 22 ±2kgcm (2.2 ± 0.2 Nm) Perform auto degaussing.

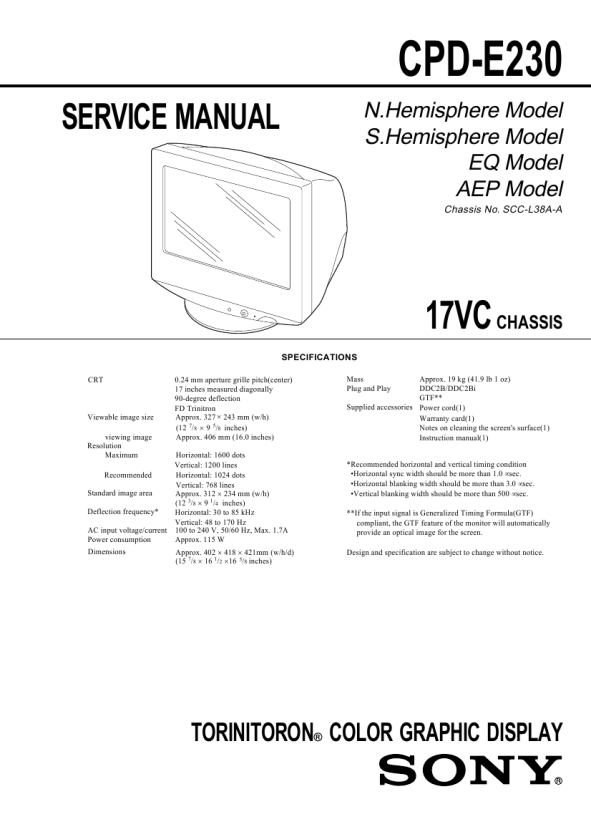

CPD-E230(E)
3-1
|
|
|
> |
|
