IC, LA9241ML
Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Pin Name FIN2 FIN1 E F TB TE� TE TESI SCI TH TA TD� TD JP TO FD FD� I/O I I I I I I O I I I O I I I O O I Description Pin to which external pickup photo diode is connected. RF signal is created by adding with the FIN1 pin signal. FE signal is created by subtracting from the FIN1 pin signal. Pin to which external pickup photo diode is connected. Pin to which external pickup photo diode is connected. TE signal is created by subtracting from the F pin signal. Pin to which external pickup photo diode is connected. DC component of the TE signal is input. Pin to which external resistor setting the TE signal gain is connected between the TE pin. TE signal output pin. TES �Track Error Sense� comparator input pin. TE signal is passed through a bandpass filter then input. Shock detection signal input pin. Tracking gain time constant setting pin. TA amplifier output pin. Pin to which external tracking phase compensation constants are connected between the TD and VR pins. Tracking phase compensation setting pin. Tracking jump signal (kick pulse) amplitude setting pin. Tracking control signal output pin. Focusing control signal output pin. Pin to which external focusing phase compensation constants are connected between the FD and FA pins. 18 FA I Pin to which external focusing phase compensation constants are connected between the FD� and FA� pins. 19 20 21 22 23 24 25 26 27 28 29 30, 31 32, 33 34 35 FA� FE FE� A-GND SP SPI SPG SP� SPD SLEQ SLD SL�, SL+ JP�, JP+ TGL TOFF I O I � O I I I O I O I I I I Pin to which external focusing phase compensation constants are connected between the FA and FE pins. FE signal output pin. Pin to which external FE signal gain setting resistor is connected between the FE pin. Analog signal GND. Single ended output of the CV+ and CV� pin input signal. Spindle amp input Pin to which external spindle gain setting resistor in 12 cm mode is connected. Pin to which external spindle phase compensation constants are connected together with SPD pin. Spindle control signal output pin. Pin to which external sled phase compensation constants are connected. Sled control signal output pin. Sled advance signal input pin from microprocessor. Tracking jump signal input pin from DSP. Tracking gain control signal input from DSP. Low gain when TGL = H. Tracking off control signal input pin from DSP. Off when TOFF = H.
29
 $4.99 CSDEL33 AIWA

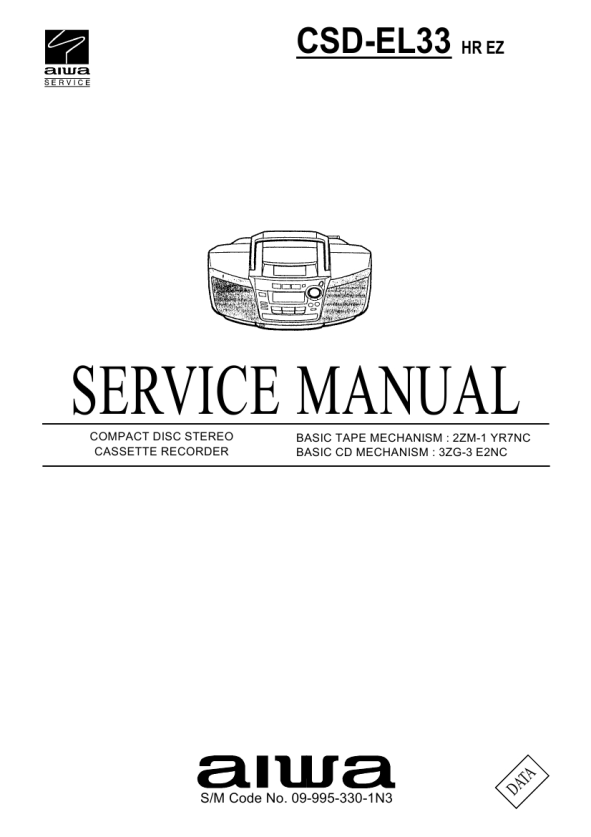

Owner's Manual Complete owner's manual in digital format. The manual will be available for download as PDF file aft…
|
|
|
> |
|
