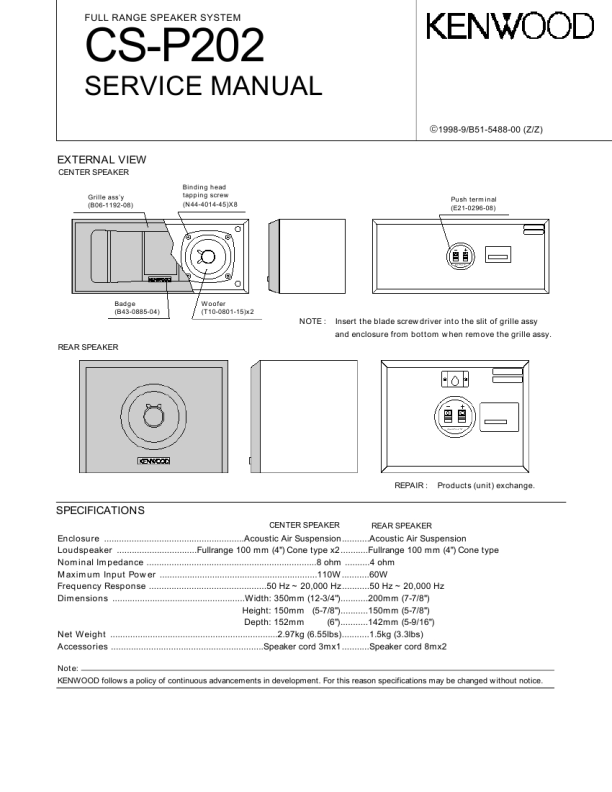

Text excerpt from page 1 (click to view)
FULL RANGE SPEAKER SYSTEM

CS-P202
SERVICE MANUAL
©1998-9/B51-5488-00 (Z/Z) EXTERNAL VIEW
CENTER SPEAKER
Grille ass�y (B06-1192-08) Binding head tapping screw (N44-4014-45)X8 Push terminal (E21-0296-08)

Badge (B43-0885-04)

Woofer (T10-0801-15)x2

NOTE : REAR SPEAKER

Insert the blade screwdriver into the slit of grille assy and enclosure from bottom when remove the grille assy.

REPAIR :

Products (unit) exchange.

SPECIFICATIONS
CENTER SPEAKER REAR SPEAKER

Enclosure ........................................................Acoustic Air Suspension...........Acoustic Air Suspension Loudspeaker ................................Fullrange 100 mm (4") Cone type x2...........Fullrange 100 mm (4") Cone type Nominal Impedance ....................................................................8 ohm ..........4 ohm Maximum Input Power ...............................................................110W...........60W Frequency Response ...............................................50 Hz ~ 20,000 Hz ...........50 Hz ~ 20,000 Hz Dimensions .....................................................Width: 350mm (12-3/4")...........200mm (7-7/8") .........................................................................Height: 150mm (5-7/8")...........150mm (5-7/8") ..........................................................................Depth: 152mm (6")...........142mm (5-9/16") Net Weight ...................................................................2.97kg (6.55lbs)...........1.5kg (3.3lbs) Accessories .............................................................Speaker cord 3mx1...........Speaker cord 8mx2
Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
