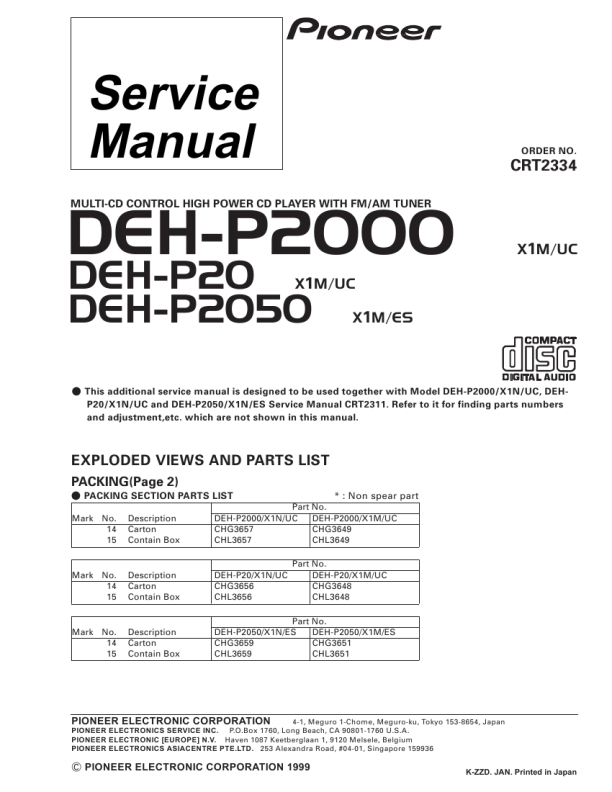

Service Manual
MULTI-CD CONTROL HIGH POWER CD PLAYER WITH FM/AM TUNER
ORDER NO.
CRT2334
DEH-P2000
DEH-P20 DEH-P2050
X1M/UC X1M/ES
X1M/UC
- This additional service manual is designed to be used together with Model DEH-P2000/X1N/UC, DEHP20/X1N/UC and DEH-P2050/X1N/ES Service Manual CRT2311. Refer to it for finding parts numbers and adjustment,etc. which are not shown in this manual.
EXPLODED VIEWS AND PARTS LIST
PACKING(Page 2)
- PACKING SECTION PARTS LIST
Mark No. 14 15 Description Carton Contain Box
* : Non spear part
Part No. DEH-P2000/X1N/UC DEH-P2000/X1M/UC CHG3657 CHG3649 CHL3657 CHL3649 Part No. DEH-P20/X1N/UC DEH-P20/X1M/UC CHG3656 CHG3648 CHL3656 CHL3648 Part No. DEH-P2050/X1N/ES DEH-P2050/X1M/ES CHG3659 CHG3651 CHL3659 CHL3651
Mark No. 14 15
Description Carton Contain Box
Mark No. 14 15
Description Carton Contain Box
PIONEER ELECTRONIC CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER ELECTRONIC CORPORATION 1999
K-ZZD. JAN. Printed in Japan
|
|
|
> |
|
