The service manual is a good quality scan of the Panasonic NV-850, which is electrically identical to the Philips VR 6920, but mecanically just nearly.

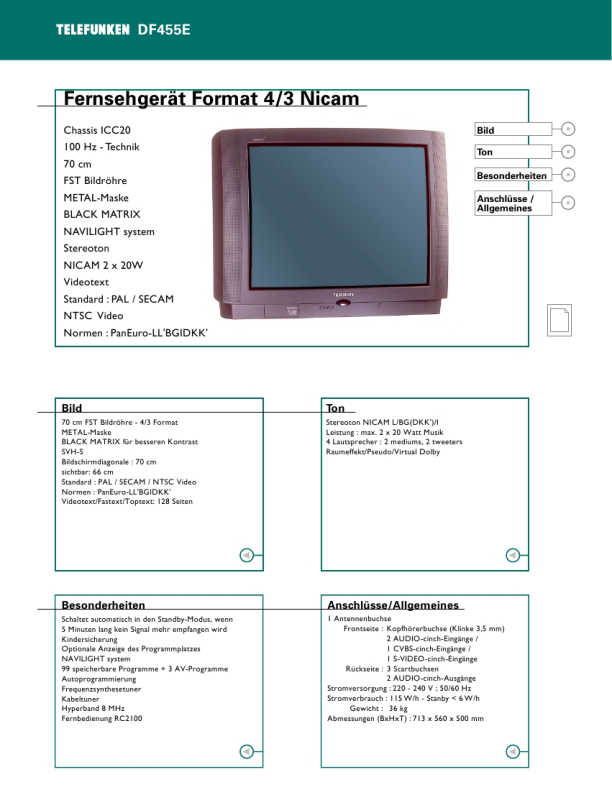

DF455E
Fernsehgerät Format 4/3 Nicam
Chassis ICC20 100 Hz - Technik 70 cm FST Bildröhre METAL-Maske BLACK MATRIX NAVILIGHT system Stereoton NICAM 2 x 20W Videotext Standard : PAL / SECAM NTSC Video Normen : PanEuro-LL'BGIDKK'
Bild Ton Besonderheiten Anschlüsse / Allgemeines
70 cm FST Bildröhre - 4/3 Format METAL-Maske BLACK MATRIX für besseren Kontrast SVH-S Bildschirmdiagonale : 70 cm sichtbar: 66 cm Standard : PAL / SECAM / NTSC Video Normen : PanEuro-LL'BGIDKK' Videotext/Fastext/Toptext: 128 Seiten
Ton
Stereoton NICAM L/BG(DKK')/I Leistung : max. 2 x 20 Watt Musik 4 Lautsprecher : 2 mediums, 2 tweeters Raumeffekt/Pseudo/Virtual Dolby
Besonderheiten
Schaltet automatisch in den Standby-Modus, wenn 5 Minuten lang kein Signal mehr empfangen wird Kindersicherung Optionale Anzeige des Programmplatzes NAVILIGHT system 99 speicherbare Programme + 3 AV-Programme Autoprogrammierung Frequenzsynthesetuner Kabeltuner Hyperband 8 MHz Fernbedienung RC2100
Anschlüsse/Allgemeines
1 Antennenbuchse Frontseite : Kopfhörerbuchse (Klinke 3,5 mm) 2 AUDIO-cinch-Eingänge / 1 CVBS-cinch-Eingänge / 1 S-VIDEO-cinch-Eingänge Rückseite : 3 Scartbuchsen 2 AUDIO-cinch-Ausgänge Stromversorgung : 220 - 240 V ; 50/60 Hz Stromverbrauch : 115 W/h - Stanby < 6 W/h Gewicht : 36 kg Abmessungen (BxHxT) : 713 x 560 x 500 mm
|
|
|
> |
|
