Home >> SANYO >> DP42545 Service Manual

 0 item(s) in your cart

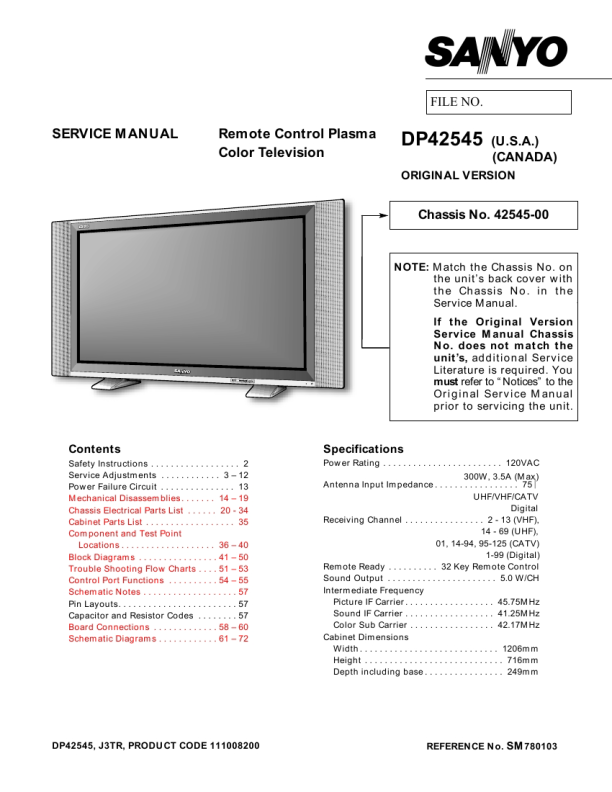

SANYO DP42545
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of SANYO DP42545 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 PT-51SX60A PANASONIC Service Manual by Kenneth Nawalkowski;
I found this service manual to be complete in every detail except for troubleshooting charts. It would be helpful if it had a set of troubleshooting charts; however it is a very good manual otherwise and for the price it is very well worth it.
 AS645 PHILIPS Service Manual by neil stock;
Complete manual included schematics layouts and alignment procedure, clear to read and magnify, extremely pleased with manual and owner manual . com's service
 R-5L SANSUI Service Manual by MAZUIR Georges;
perfect, i am very satisfait for the réception of the sansui r-5l service manual, thank you very much
 KAC887 KENWOOD Service Manual by Vasile Ceteras;
Thank you, this is a rare document. Few others have it, but they charge way more for a download. Great deal (even if you have to wait a few hours to get it).
 04LC1000/05R/08R PHILIPS Service Manual by Nils Thei;
The purchased manual is an high quality scan of the original Philips paper-based Service Manual. I am very satisfied!

Text excerpt from page 12 (click to view)
SERVICE ADJUSTMENTS (Continued)
WHITE BALANCE ADJUSTMENT Composite (External Video Input)
1. Connect a color-bar generator to the external (composite) video input terminal. 2. Switch the generator to the white pattern. 3. Set the television to following conditions: Picture: Color Enhancer: Picture Size: Display Area: SPORTS Normal Full 16:9 3. Set the television to following conditions: Picture: Color Enhancer: Picture Size: Display Area: AUTO Normal Full 16:9

4. Enter the Service Mode. The Menu display will appear. 5. Select �White Balance Adjustment� Menu. RF: No. 006(R), No. 007(G), or No. 008(B) Digital: No. 024(R), No. 025(G), or No. 026(B) 6. Adjust Red, Green, and Blue Levels to produce normal black and white picture in highlight areas.

4. Enter the Service Mode. See page 3. The Menu display will appear. 5. Select �White Balance Adjustment� Menu. No. 000(R), No. 001(G), or No. 002(B) 6. Adjust Red, Green, and Blue Levels to produce normal black and white picture in highlight areas. Note: One or two data of RGB should be left at �20� for normal contrast level. Do not change the data to more than �20.�

BLACK BALANCE ADJUSTMENT
Black Balance Adjustment may be unnecessary if the White Balance Adjustment of Composite is OK.

Composite (External Video Input)
1. Connect a color-bar generator to the external (composite) video input terminal. 2. Switch the generator to the dark grey pattern (�30% white� recommended). 3. Set the television to following conditions: Picture: Color Enhancer: Picture Size: SPORTS Normal Full

Component (External Video Input)
Caution: White Balance Adjustment of Composite must be completed before attempting other input adjustments. 1. Connect a color-bar generator to the external (composite) video input terminal (D1-D4). 2. Switch the generator to the white pattern. 3. Set the television to following conditions: Picture: Color Enhancer: Picture Size: Display Area: SPORTS Normal Full 16:9

Display Area: 16:9 4. Enter the Service Mode. The Menu display will appear. 5. Select �Black Balance Adjustment� Menu. No. 003(R), No. 004(G), or No. 005(B) 6. Adjust Red, Green, and Blue Levels alternately with 1, 3, 4, 6, 7, or 9 key to produce normal black and white picture in dark grey areas.

4. Enter the Service Mode.The Menu display will appear. 5. Select �White Balance Adjustment� Menu. D1/D2: No. 012(R), No. 013(G), or No. 014(B) D3/D4: No. 018(R), No. 019(G), or No. 020(B) 6. Adjust Red, Green, and Blue Levels to produce normal black and white picture in highlight areas.

Other Inputs
Caution: Black Balance Adjustment of Composite must be completed before attempting other input adjustments. 1. Connect a color-bar generator to the preferred video input terminal. 2. Switch the generator to the dark gray pattern. 3. Set the television to following conditions: Picture: Color Enhancer: Picture Size: Display Area: SPORTS Normal Full 16:9

Other Inputs
Caution: White Balance Adjustment of Composite must be completed before attempting other input adjustments. White Balance Adjustment for other modes [RF, Digital] may be unnecessary if the adjustment of Composite is OK. 1. Connect a color-bar generator to the preferred video input terminal. 2. Switch the generator to the white pattern.

4. Enter the Service Mode. The Menu display will appear. 5. Select �Black Balance Adjustment� Menu. RF: No. 009(R), No. 010(G), or No. 011(B) D1/D2: No. 015(R), No. 016(G), or No. 017(B) D3/D4: No. 021(R), No. 022(G), or No. 023(B) Digital: No. 027(R), No. 028(G), or No. 029(B) 6. Adjust Red, Green, and Blue Levels to produce normal black and white picture in dark grey areas.

� 12 �
