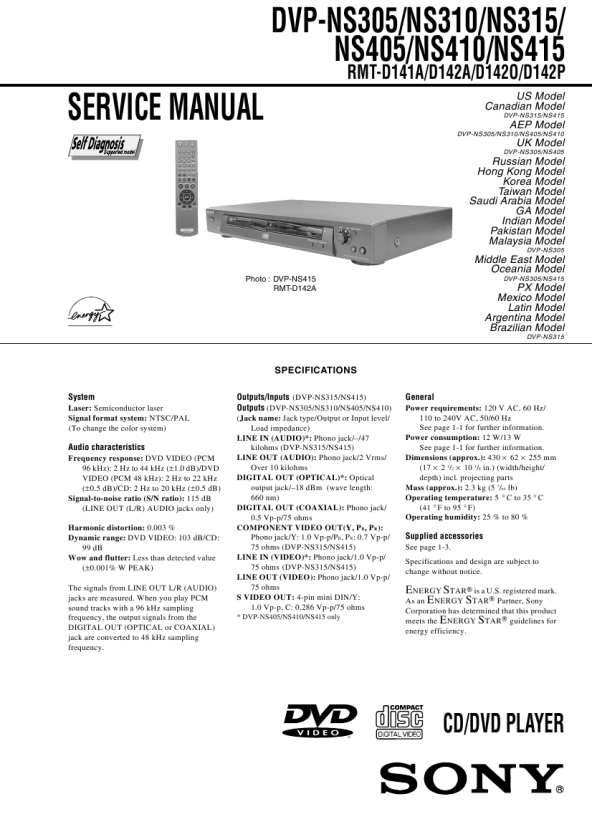

SONY DVP-NS310
Service Manual

� LFE (Low Frequency Effect) signal

2 Press C/c to select
TV Virtual Surround Settings (TVS)
When you connect a stereo TV or 2 front speakers, TVS (TV Virtual Surround) lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers (L: left, R: right) without using actual rear speakers. TVS was developed by Sony to produce surround sound for home use using just a stereo TV. This function is designed to work with the LINE OUT L/R (AUDIO) jacks. Note that if you select one of the TVS settings, the player does not output Dolby Digital signals from the DIGITAL OUT (OPTICAL or COAXIAL) jack. (when you set �DOLBY DIGITAL� in �AUDIO SETUP� to �D-PCM�) (page 62)
DVP-NS315 DVP-NS415

Note
If �DTS� is set to �OFF� in �AUDIO SETUP,� the DTS track selection option will not appear on the screen even if the disc contains DTS tracks (page 62).

(SURROUND), then press ENTER repeatedly to select one of the TVS sounds.
Refer to the following explanations given for each item. � TVS DYNAMIC � TVS WIDE � TVS NIGHT � TVS STANDARD
TVS DYNAMIC

TV

To cancel the setting
Select �OFF� in Step 2.

To turn off the Control Bar
Press DISPLAY repeatedly until the Control Bar is turned off. NTVS DYNAMIC Creates virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV.
TV

NTVS NIGHT Large sounds, such as explosions, are suppressed, but the quieter sounds are unaffected. This feature is useful when you want to hear the dialog and enjoy the surround sound effects of �TVS WIDE� at low volume. NTVS STANDARD Creates virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. The virtual speakers are reproduced as shown in the illustration below. Use this setting when you want to use TVS with 2 separate speakers.
L R

SUR

ENTER DISPLAY

L: Front speaker (left) R: Front speaker (right) : Virtual speaker NTVS WIDE Creates virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. The virtual speakers are reproduced as shown in the illustration below. This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV.
z Hint You can also change the setting by pressing SUR (or SURROUND on the player) repeatedly.

1 Press DISPLAY twice during
playback.
The following Control Bar appears.

Notes
� When the playing signal does not contain a signal for the rear speakers, the surround effects will be difficult to hear. � When you select one of the TVS modes, turn off the surround setting of the connected TV or amplifier (receiver). � Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings.
,continued

44

45

� �TVS NIGHT� only works with Dolby Digital discs. However, not all discs will respond to the �TVS NIGHT� function in the same way. � If you use the DIGITAL OUT (OPTICAL or COAXIAL) jack and set �DOLBY DIGITAL� to �DOLBY DIGITAL� or �DTS� to �ON� in �AUDIO SETUP,� sound will come from your speakers but it will not have the TVS effect.

Displaying the Subtitles
Enjoying Movies

Changing the Angles
If various angles (multi-angles) for a scene are recorded on the DVD, � � appears in the front panel display. This means that you can change the viewing angle.
DVP-NS315 DVP-NS415

If subtitles are recorded on the discs, you can change the subtitles or turn them on and off whenever you want while playing a DVD.
DVP-NS315 DVP-NS415

SUBTITLE ANGLE

Sound Adjustments Enjoying Movies

1 Press SUBTITLE during playback. 1 Press ANGLE during playback.
The number of the angle appears on the display. The number in parentheses indicates the total number of angles.
2(7)

The following display appears. The number in parentheses indicates the total number of available subtitles.
() 1 8 :ENGLISH

2 Press SUBTITLE repeatedly to
select the language.
Depending on the DVD, the choice of language varies. When 4 digits are displayed, they indicate a language code. Refer to �Language Code List� on page 68 to see which language the code represents.

2 Press ANGLE repeatedly to select
the angle number.
The scene changes to the selected angle.

Note
Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.

To turn off the subtitles
Select �OFF� in Step 2.

Note
Depending on the DVD, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off.

46

47
