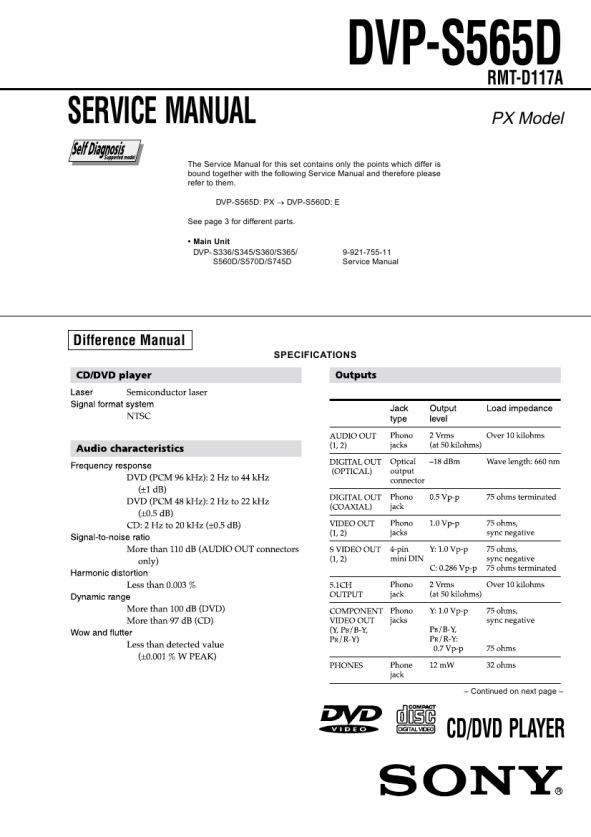

Text excerpt from page 1 (click to view)
DVP-S565D
RMT-D117A
PX Model
SERVICE MANUAL
The Service Manual for this set contains only the points which differ is bound together with the following Service Manual and therefore please refer to them. DVP-S565D: PX � DVP-S560D: E See page 3 for different parts. � Main Unit DVP- S336/S345/S360/S365/ S560D/S570D/S745D
