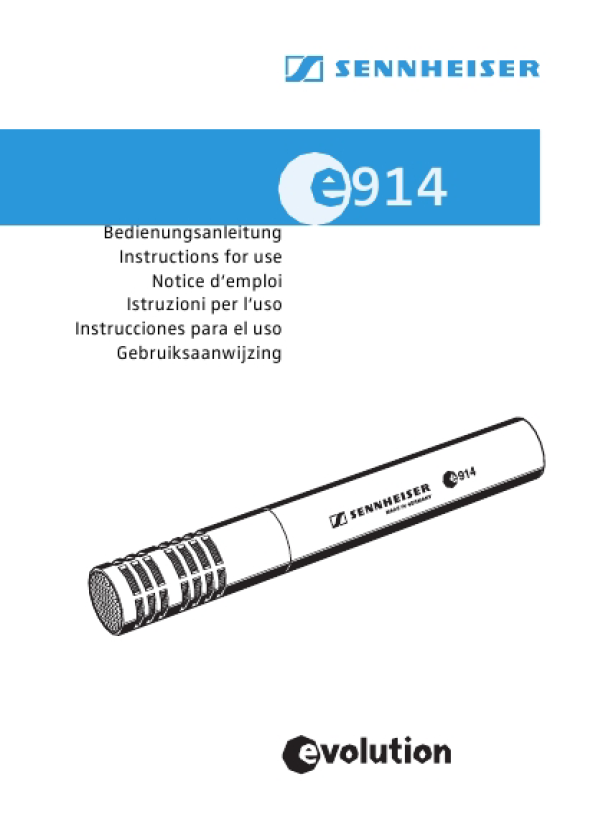

SENNHEISER E914
Owner's Manual

Frequency response curves with different sensitivities
dBv - 35 - 40 - 45 - 50 - 55 - 60 - 65 - 70 20 50 100 200 500 1000 2000 5000 10000 20000 Hz

0 dB

-10 db

-20 db

Adjusting the bass filter (B) The 914 has been designed for an extended lowfrequency bass response. With certain live or close instrument miking applications, an over-emphasis of the low frequencies can occur. This can be compensated for by the 6 dB/octave roll-off filter. The cut-off filter reduces low-frequency wind noise by 18 dB/octave. Frequency response curves with different filters
dBv - 35 - 40 - 45 - 50 - 55 - 60 - 65 - 70 20 50 100 200 500 1000 2000 5000 10000 20000 Hz

bass

roll off

cut off

14
