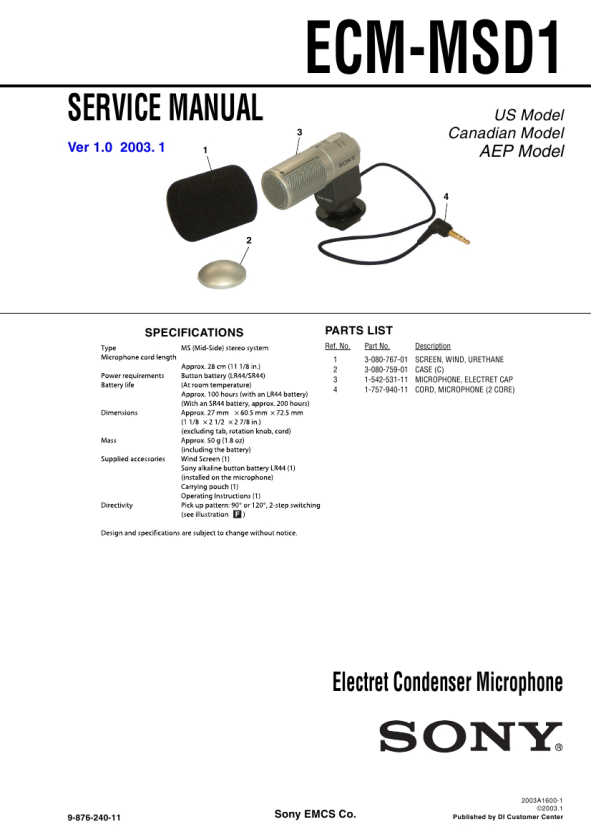

Text excerpt from page 1 (click to view)
ECM-MSD1
SERVICE MANUAL
3
US Model Canadian Model
Ver 1.0 2003. 1
1
AEP Model
4
2
SPECIFICATIONS
PARTS LIST
Ref. No. 1 2 3 4 Part No. 3-080-767-01 3-080-759-01 1-542-531-11 1-757-940-11 Description SCREEN, WIND, URETHANE CASE (C) MICROPHONE, ELECTRET CAP CORD, MICROPHONE (2 CORE)
