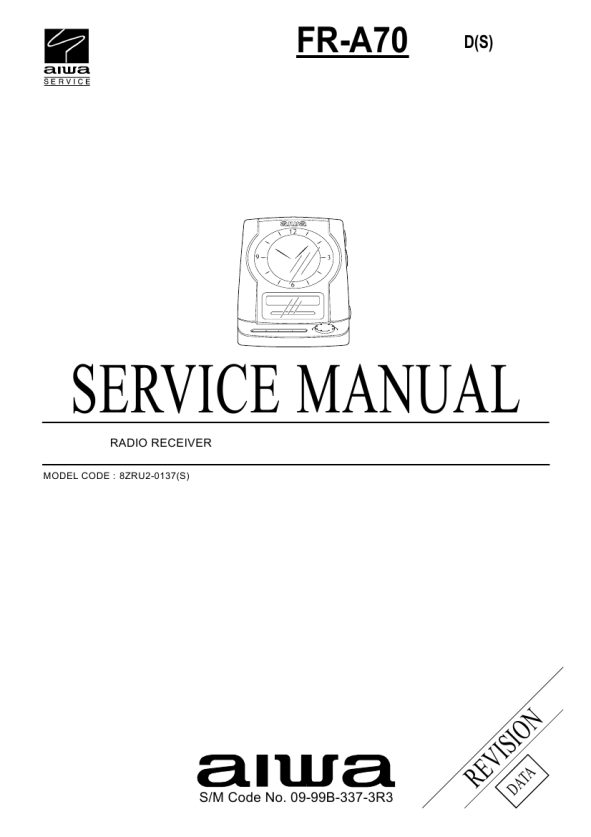

Text excerpt from page 14 (click to view)
PRACTICAL SERVICE FIGURE
< FM SECTION >
Sensitivity: Intermediate frequency: Less than 16dB (at 88MHz) Less than 14dB (at 98/108MHz) 10.7MHz
< AM SECTION >
Sensitivity: (S/N 10dB) Signal to noise ratio: (Input 74dB) Distortion: (Input 100dB Modulation 60%) Intermediate frequency: Less than 46dB (at 600kHz) Less than 45dB (at 1000/1400kHz) More than 30dB (at 600/1000/1400kHz) Less than 3% (at 1000kHz) 455kHz
