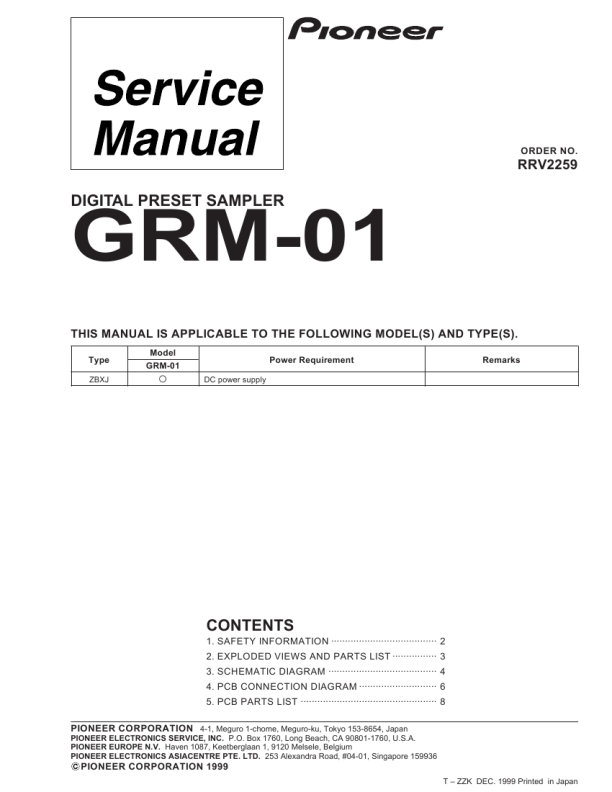

GRM-01
2. EXPLODED VIEWS AND PARTS LIST
NOTES: Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly.
2.1 PACKING
4 2 3 5
2.2 MUSIC PAD
2 6 6 10 1 5
7
4
8 3 10 10 1 7 10
2
10
9 8
÷ PACKING PARTS LIST
Mark No.
NSP 1 2 3 4 5
Description
Music Pad Dry Cell Battery (R6P, AA) Cord With Plug Convert Plug Operating Instructions (English/Arabian/Russian/ Chinese/Spanish/French) Pad L Pad R Packing Case Packing Case Packing Sheet
Part No.
XXD3021 VEM-013 XDE3025 XKM3003 XRE3029
÷ MUSIC PAD PARTS LIST
Mark No.
1 2 3 4 5 6 7 8 9 10
Description
MUSIC PAD ASSY Battery Spring A Battery Spring B Rubber Button A Rubber Button B Top Cover Bottom Case Battery Caver ������ Screw
Part No.
XWM3119 XBH3004 XBH3005 XAD3036 XAD3037 XAK3115 XAK3116 XMR3011 BPZ30P100FZK
6 7 8 9 10
XHA3022 XHA3023 XHD3116 XHD3115 XHG3007
3
|
|
|
> |
|
