Home >> SONY >> HCD-EP505 Service Manual

 0 item(s) in your cart

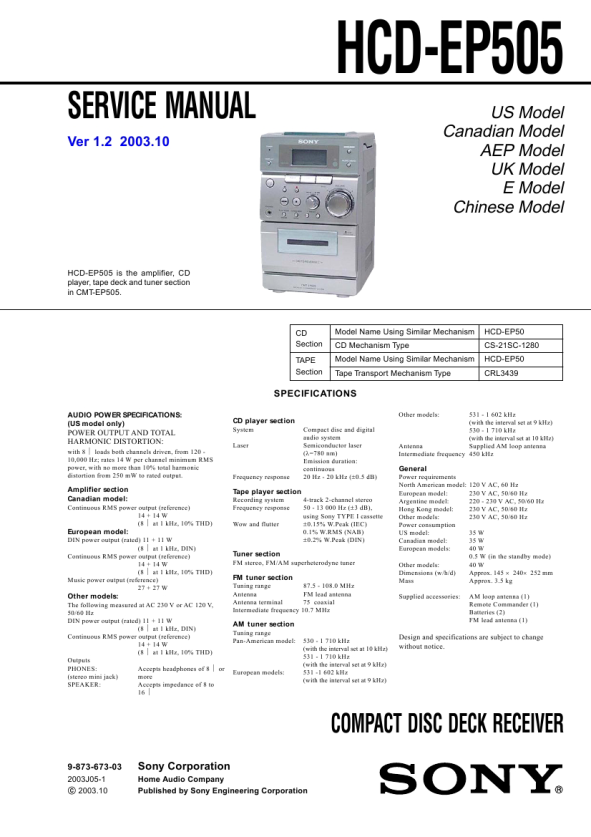

SONY HCD-EP505
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of SONY HCD-EP505 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 200P3 PHILIPS Service Manual by gert warringa;
I got the manual quickly after the payment was transfered (1 day). The manual was exactly what i needed and the updates via e-mail were great. Thanx!
 DN951FA DENON Service Manual by Kennet Andersson;
I've looked for this manual all over that internet, you guys had it and to a good price. A++++
 DN-990R DENON Service Manual by Kennet Andersson;
I've looked some time for this manual, you guys had it and to a good price. A++++
 20RS100S SHARP Service Manual by rafael quinones-lopez;
factory technician level - complete with board views : ( removing chassis from cabinet , only thing missing ) ; on weekends , staff is not available so - be patient .
 PVM6041QM SONY Service Manual by Al Back;
Good complete Service-Manual (SONY PVM6041QM) A few graphics and waveforms not very clear! (-1*)

Text excerpt from page 11 (click to view)
HCD-EP505 SECTION 4 MECHANICAL ADJUSTMENTS
PRECAUTION
1. Clean the following parts with a denatured-alcohol-moistened swab : record/playback head pinch roller erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. (Do not bring the head magnetizer close to the erase head.) 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. � Torque Measurement
Mode FWD FWD Back Tension FF Torque Meter CQ-102C Meter Reading 2.95 � 6.86 mN�m (30 � 70 g�cm) (0.42 � 0.97 oz�inch) 0.15 � 5.39 mN�m (1.5 � 5.5 g�cm) (0.021 � 0.076 oz�inch) more than 5.89 mN�m (more than 60 g�cm) (more than 0.83 oz�inch) REW CQ-201B more than 5.89 mN�m (more than 60 g�cm) (more than 0.83 oz�inch)

SECTION 5 ELECTRICAL ADJUSTMENTS
PRECAUTION
1. Setting MEGA BASS switch : OFF

TAPE DECK SECTION
Test tape
Type WS-48B Signal 3 kHz, 0 dB

0 dB=0.775 V

Used for Tape Speed Adjustment

Tape Speed Adjustment Setting: Function: TAPE
test tape WS-48B (3 kHz, 0 dB) 47 k� set + � MAIN board SPEAKER terminal (CN503)

frequency counter

CQ-102C

CQ-201B

Procedure: 1. Playback WS-48B (tape center) in the FWD state. 2. Adjsut the volume in CAPSTAN/REEL motor so that the frequency counter reading becomes 3,000 Hz. Specified Value: 2,910 to 3,090 Hz 3. Confirm that the frequency at the beginning and that at the end of tape winding are between 2,955 to 3,045 Hz. Adjustment Location:

� Tape Tension Measurement
Mode FWD Tension Meter CQ-403A Meter Reading more than 100 g (more than 3.53 oz)

CAPSTAN/REEL motor

Tape Speed Adjustment

Sample Value of Wow and Flutter: 0.3% or less W. RMS (JIS) (WS-48B)

11
