is part of the manual is very useful for repairing
Here are circuit diagrams
if there is damage, I recommend using this part of the
a complete list of circuit boards and components

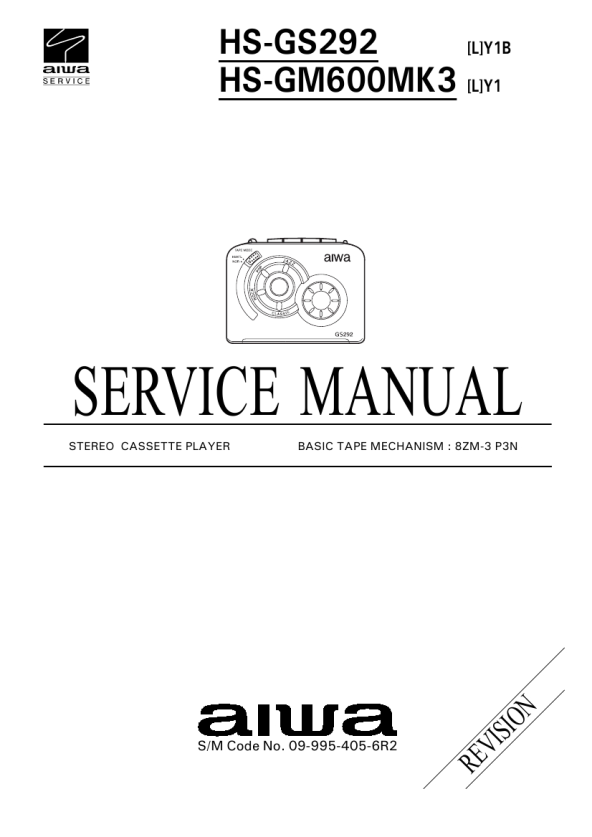

Text excerpt from page 2 (click to view)
SPECIFICATIONS
Maximum output: Load impedance: Power source: Maximum dimensions: Weight 4 mW + 4 mW (EIAJ/16W) 16 � 32 ohms DC 3V using two R6 (size AA) batteries AC house current using the optional AC adaptor AIWA AC � D302 111.8 (W) x 88 (H) x 32.3 (D) mm (41/ x 31/ x 15/ in.) Approx.120g (4.2 oz) (excluding batteries)
2 2 16
� Design and specifications are subject to change without notice.
