Home >> AIWA >> HSPS191 Service Manual

 0 item(s) in your cart

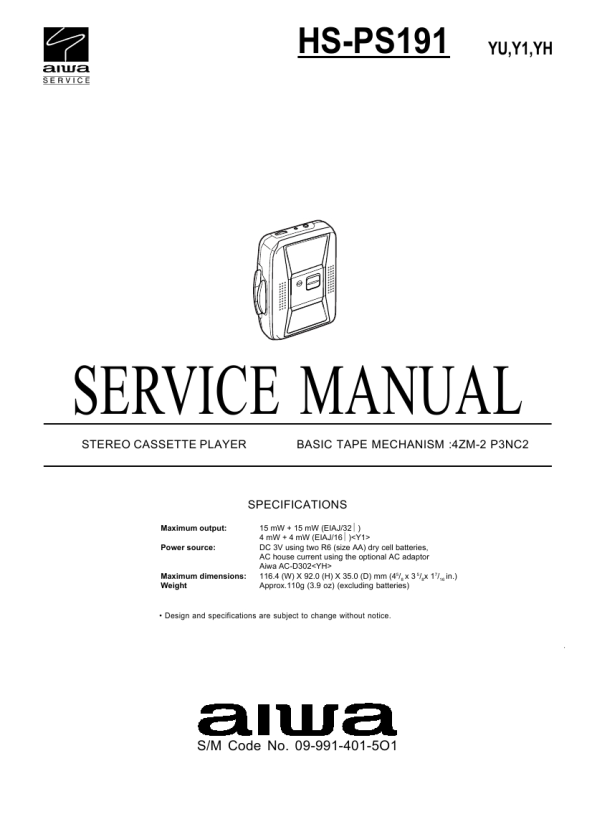

AIWA HSPS191
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of AIWA HSPS191 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 PROFIL 3563Z LOEWE Service Manual by jorge garcia;
muy buen manual por lo completo de este algunos esquemas estan muy divididos lo que hace algo dificil el seguimiento.
 KV29C5E SONY Service Manual by jorge garcia;
very good manual, with detail and clarity in esquematic diagrams and waveforms .
 PM3216 PHILIPS Service Manual by Ivan Semyonov;
Very quality copy of original service manual, which contains the circuit diagrams, PCB and lists of components, well as recommendation for calibration procedures of device, also everything else, that need for repair, tuning and use this oscilloscope. All presented copies have high-resolution, so you can view all in detail. This manual will very useful for simple owners and for repairers. I recommend these manual, because myself is owner of Philips PM3216 and I need sometimes servicing these oscilloscope (principally calibrating). Also, these document is an example of excellent design of technical documentation.
 GR-AX900U JVC Service Manual by Stephane Pouliot;
Excellent printing quality. A complete and very usefull service manual with all details. GREAT SERVICE AT VERY LOW PRICE! A+++++++++++++++++++++++++
 SLVE630NP SONY Service Manual by jorge garcia;
manual excelente completo , diagramas y esquemas bien presentados y buena calidad de imagen.

Text excerpt from page 3 (click to view)
ADJUSTMENT <DECK>

A MAIN C.B

VOLUME

PHONES SFR 1
12

1

1.

Tape Speed Adjustment Settings : � Test tape : TTA�100(TAPE CENTER) � Test point : PHONES JACK (J1) � Adjustment location : SFR1 Method : Play back the test tape and adjust SFR1 so that the frequency is 3000Hz±10Hz. Head Azimuth Adjustment Settings : � Test tape : TTA�300 � Test point : PHONES JACK (J1) � Adjustment location : Head azimuth adjustment screw Method : Play back the test tape and adjust the screw so that the output becomes maximum and same phase

PRACTICAL SERVICE FIGURE
Tape speed : Wow & flutter : Take-up torque : F.F/REW torque : Back tension : S/N ratio : Distortion : Noise level : 3000Hz ± 50Hz Less than 0.5% (RMS) 40g-cm (FWD/RVS) More than 60g-cm 1.5 ~ 4.5g-cm (FWD/RVS) More than 43dB (PB, DC) Less than 3.0% (PB, DC) Less than 7.0mV (Vol MAX, PB, DC) Less than 0.5mV (Vol MIN, PB, DC) 63Hz + 2/� 4dB ~ 8kHz + 3/� 4dB TTA�210 TTA�320/TTA-310 TTA� 100

2.

Frequency response : Test tape :

3
