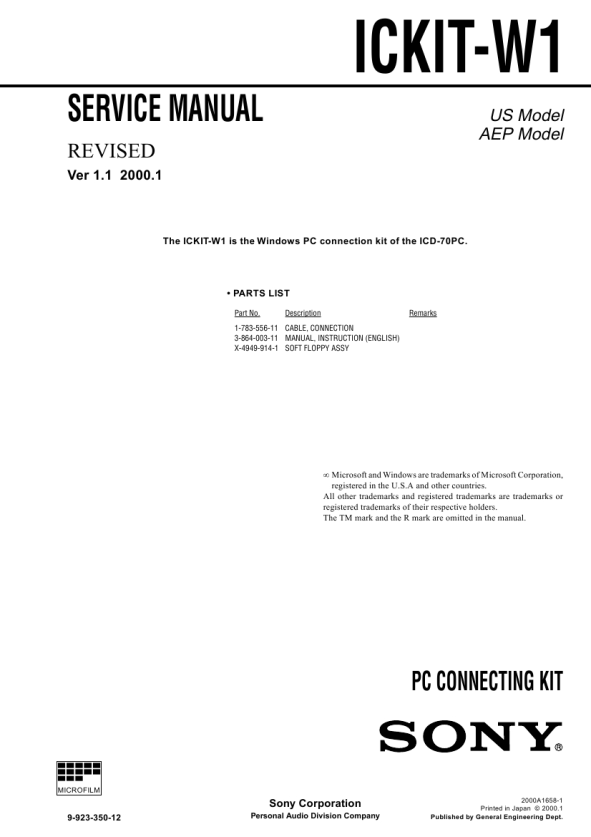

ICKIT-W1
SERVICE MANUAL
REVISED
Ver 1.1 2000.1
US Model AEP Model
The ICKIT-W1 is the Windows PC connection kit of the ICD-70PC.
� PARTS LIST
Part No. Description Remarks
1-783-556-11 CABLE, CONNECTION 3-864-003-11 MANUAL, INSTRUCTION (ENGLISH) X-4949-914-1 SOFT FLOPPY ASSY
� Microsoft and Windows are trademarks of Microsoft Corporation, registered in the U.S.A and other countries. All other trademarks and registered trademarks are trademarks or registered trademarks of their respective holders. The TM mark and the R mark are omitted in the manual.
PC CONNECTING KIT
MICROFILM
Sony Corporation
9-923-350-12
Personal Audio Division Company
2000A1658-1 Printed in Japan © 2000.1 Published by General Engineering Dept.
 $4.99 ICKIT-W1 SONY
