TUNER OPERATIONS
1�0/10, +10 POWER ENTER MULTI JOG CLEAR ENTER PRESET PAUSE/SET SHIFT CLEAR TUNER/ BAND BAND TUNER MODE
Tuning in to preset stations
On the unit 1 Press TUNER/BAND to select a band.
2 Press cPRESET repeatedly or turn MULTI JOG.
With each press, the station with the succeeding preset number is tuned in.
On the remote 1 Press SHIFT+BAND to select a band.
2 Press the numbered buttons for the preset number of your desired station.
- To select preset number 10, press 0/10. - To select preset number 15, press +10 and 5. - To select preset number 20, press +10, +10 and 0/10. � Pressing r or t repeatedly can also select the preset number. To clear a preset station 1 Tune in to the station by preset tuning. 2 Press sCLEAR on the unit (CLEAR on the remote), then press ENTER within 6 seconds. Preset numbers of preset stations in the band with higher numbers decrease by one.
En
Manual tuning
1 Press TUNER/BAND (SHIFT+BAND on the remote) repeatedly to select a band (FM or AM). 2 Press f or g to tune in to a station.
"TUNE" appears when a station is tuned in. "1" lights up for FM stereo reception. To search for a station automatically (Auto Search) Hold down f or g. The unit searches for a station up or down the band and stops at reception. To stop the search manually, press f or g. �Auto Search may not stop at stations with weak signals.
Preset tuning
Preset your favorite stations and tune them in directly.
Presetting stations
1 Press TUNER/BAND to select a band. 2 Press f or g to tune in to the desired station. 3 Press ENTER (or a PAUSE/SET on the unit) to store the station.
The preset number, beginning from "1", appears in the display.
4 Repeat step 1 to 3 to preset other stations.
�You cannot store more than a total of 32 preset stations. "FULL" appears.
14

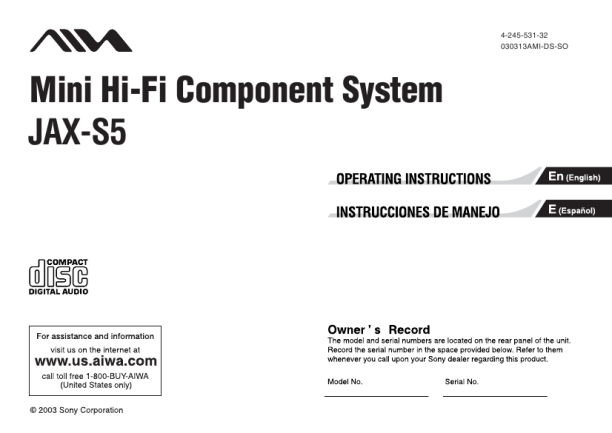

 $4.99 JAXS5 AIWA
