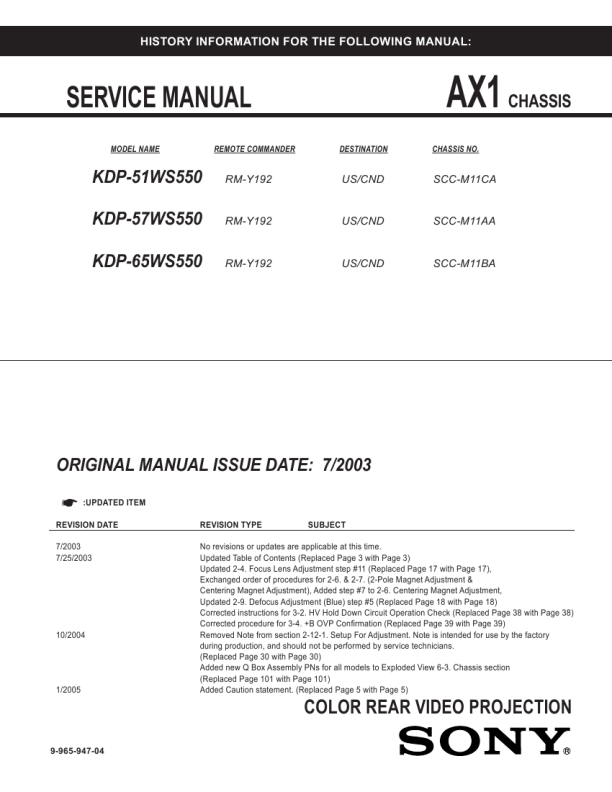

KDP-51WS550/57WS550/65WS550
11. Select �GRN MSIZ�, and correct the space intervals for the horizontal section so the screen is equal. GRN MSIZ (Horizontally) 15. Press the �9� button on the remote commander to enter fine adjustment mode. 16. Make the fine adjustment so that horizontal lines and vertical lines become straight. 17. Press the �9� button on the remote commander to return to coarse adjustment mode.
2) RED ADJUSTMENT
Push the joystick to� Push the joystick to�
12. Select �GRN MLIN�, and correct the sizes of the horizontal line so the center of the screen is symmetrical left and right. GRN MLIN (Horizontally)
1. Cover the blue CRT lens with a lens caps to allow only the green and red to show (or use the method shown in the note below for turning off the CRTs individually without using lens caps). 2. Press the �3� button on the remote commander to select RED mode. 3. Adjust the following items so that red lines overlap with green lines. � � � � � � � RED CENT (horizontally/vertically) RED SKEW (horizontally/vertically) RED SIZE (horizontally/vertically) RED LIN (horizontally/vertically) RED MSIZ (horizontally) RED MLIN (horizontally) RED PIN (horizontally/vertically)
Push the joystick to�
Push the joystick to�
Note: The SIZE and LIN, MSIZ and MLIN adjustments affect each other. If necessary, adjust these mutually. 13. Select �GRN PIN�, and adjust so that right and left vertical lines on the screen become straight. Adjust so that upper and lower horizontal lines on the screen become straight. GRN PIN (Horizontally/Vertically)
Push the joystick to� Push the joystick to�
� RED KEY (vertically) 4. Press the �9� button on the remote commander to enter fine adjustment mode. 5. Make the fine adjustment so that horizontal lines and vertical lines overlap with green lines. 6. Press the �9� button on the remote commander to return to coarse adjustment mode. Note: If lens caps are unavailable, you can cut off the unnecessary color beams by controlling the service mode MCP-RON, GON, BON.
3) BLUE ADJUSTMENT
1. Remove the lens cap from the blue picture lens to display all colors. 2. Press the �3� button on the remote commander to select BLU mode. 3. Adjust the following items so that blue lines overlap with green lines. � BLU CENT (horizontally/vertically) � BLU SKEW (horizontally/vertically) � BLU SIZE (horizontally/vertically) � BLU LIN (horizontally/vertically) � BLU PIN (horizontally/vertically) � BLU KEY (vertically) 4. Press the �9� button on the remote commander to enter fine adjustment mode. 5. Make the fine adjustment so that horizontal lines and vertical lines overlap with green and red lines. 6. Press the �9� button on the remote commander to return `to coarse adjustment mode. Note: When replacing CRTs, adjust the set-up adjustments (2-1 to 2-9) and the registration adjustment (2-12). When replacing multiple CRTs at the same time, replace and adjust them individually.
Push the joystick to�
Push the joystick to�
14. Select �GRN KEY�, and adjust so that upper and lower horizontal lines on the screen become parallel. GRN KEY (Vertically)
Push the joystick to�
Push the joystick to�
Note: The VPIN and KEY adjustments affect each other. If necessary, adjust these mutually.
� 34 �
|
|
|
> |
|
