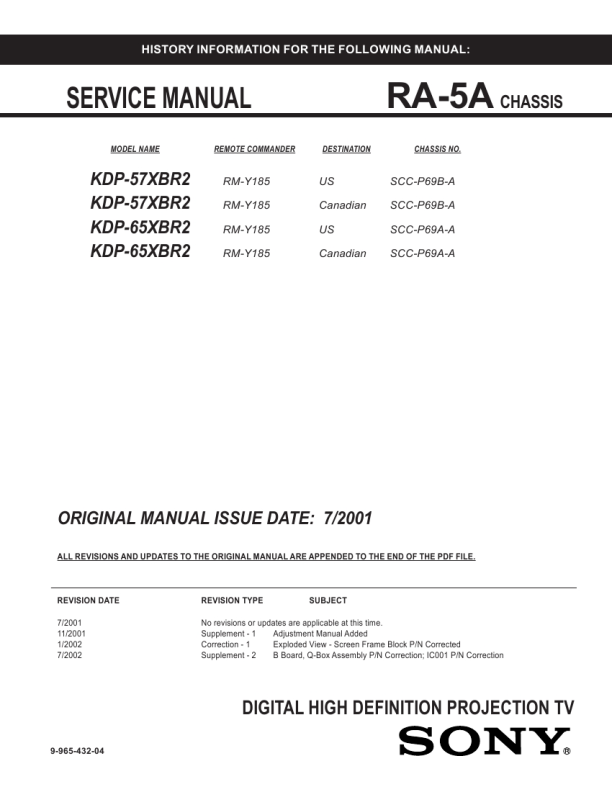

KDP-57XBR2/65XBR2 K
RM-Y185
6) Select �GRN SKEW�, and correct the tilt of horizontal lines and vertical lines. � GRN SKEW (horizontally/vertically)
Move the joystick b. Move the joystick B.
9) Select �GRN MSIZ�, and correct the space intervals for the horizontal section of the screen are equal. � GRN MSIZ (horizontally)
Move the joystick b.
Move the joystick B.
10) Select �GRN MLIN�, and correct the sizes of the horizontal line at the center of the screen are symmetrical left and right.
Move the joystick V. Move the joystick v.
� GRN MLIN (horizontally)
7) Select �GRN SIZE�, and adjust so that each distance from center to left end and to right end is equal. Adjust so that each distance from center to top and to bottom is equal. � GRN SIZE (horizontally/vertically)
Move the joystick b. Move the joystick B.
Move the joystick b.
Move the joystick B.
Note: The SIZE and LIN, MSIZ and MLIN adjustments are affected each other. So adjust these mutually if necessary. 11) Select �GRN PIN�, and adjust so that right and left vertical lines on the screen become straight. Adjust so that upper and lower horizontal lines on the screen become straight. � GRN PIN (horizontally/vertically)
Move the joystick b. Move the joystick B.
Move the joystick V.
Move the joystick v.
8) Select �GRN LIN�, and adjust so that each space at the right end and at the left end of screen is equal. Adjust so that each space at the top and at the bottom of screen is equal.
Move the joystick V. Move the joystick v.
� GRN LIN (horizontally/vertically)
Move the joystick b. Move the joystick B.
12) Select �GRN KEY�, and adjust so that upper and lower horizontal lines on the screen become parallel. � GRN KEY (vertically)
Move the joystick V.
Move the joystick v.
Move the joystick V.
Move the joystick v.
Note: The VPINand KEY adjustments are affected each other. So adjust these mutually if necessary.
� 43 �
|
|
|
> |
|
