Home >> SONY >> KDP65XBR2 Service Manual

 0 item(s) in your cart

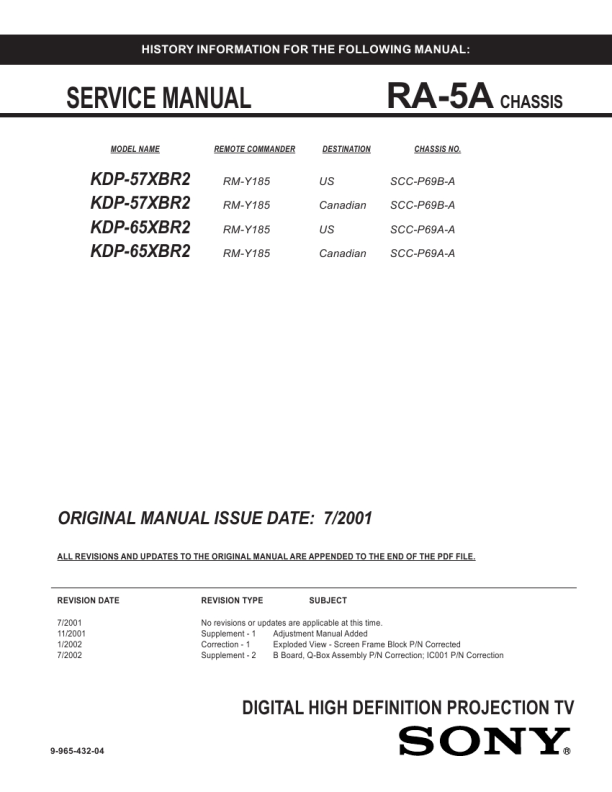

SONY KDP65XBR2
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of SONY KDP65XBR2 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 22DC982 PHILIPS Service Manual by Szalka Imre;
Very good quality original datasheet!I like this amazing website!!!!!!
 MODEL 3080 NAD Service Manual by Jeremy Whitehead;
Excellent just what I needed to replace the electrolytic caps and make this old gem a beauty again. Was as scan of the original photocopied service manual.
 15L30 SALORA Service Manual by Libor Sindelar;
It was helpful to get schematic with waveforms in important points and lot of service information. Manual is good quality, fast delivered. Of course it is hardcopy of paper one with all its disadvantages.
 HXA351W AKAI Service Manual by Thomas Marshall;
I want to give you a real heads-up for your desire to enable such people as I to acquire the information I need to maintain the older types of equipment such as this Akai HXA351W. You do a swell job with all the processes you have to perform so I can have a legible, thus usable document which does not send me crazy trying to figure out the blurry text of a bad copy. Very well done, Thomas.
 PCM-800 SONY Service Manual by Alexander French;
This manual is very well presented and after printing out looks about as close to an original as I think you can get. The quality is second to none. The content of the manual is comprehensive and I think it would be well suited to an audio repair professional which I'm not but I did find it very informative and helpful. The cost of the manual is more than covered by the money I'll save when I change the keep memory battery now I have the relavant info. Very pleased with my purchase and can recommend it wholeheartedly as I can other manuals I've downloaded from this site. Regards Limey Alex

Text excerpt from page 44 (click to view)
KDP-57XBR2/65XBR2 K
RM-Y185

6) Select �GRN SKEW�, and correct the tilt of horizontal lines and vertical lines. � GRN SKEW (horizontally/vertically)
Move the joystick b. Move the joystick B.

9) Select �GRN MSIZ�, and correct the space intervals for the horizontal section of the screen are equal. � GRN MSIZ (horizontally)

Move the joystick b.

Move the joystick B.

10) Select �GRN MLIN�, and correct the sizes of the horizontal line at the center of the screen are symmetrical left and right.
Move the joystick V. Move the joystick v.

� GRN MLIN (horizontally)

7) Select �GRN SIZE�, and adjust so that each distance from center to left end and to right end is equal. Adjust so that each distance from center to top and to bottom is equal. � GRN SIZE (horizontally/vertically)
Move the joystick b. Move the joystick B.

Move the joystick b.

Move the joystick B.

Note: The SIZE and LIN, MSIZ and MLIN adjustments are affected each other. So adjust these mutually if necessary. 11) Select �GRN PIN�, and adjust so that right and left vertical lines on the screen become straight. Adjust so that upper and lower horizontal lines on the screen become straight. � GRN PIN (horizontally/vertically)
Move the joystick b. Move the joystick B.

Move the joystick V.

Move the joystick v.

8) Select �GRN LIN�, and adjust so that each space at the right end and at the left end of screen is equal. Adjust so that each space at the top and at the bottom of screen is equal.
Move the joystick V. Move the joystick v.

� GRN LIN (horizontally/vertically)
Move the joystick b. Move the joystick B.

12) Select �GRN KEY�, and adjust so that upper and lower horizontal lines on the screen become parallel. � GRN KEY (vertically)

Move the joystick V.

Move the joystick v.

Move the joystick V.

Move the joystick v.

Note: The VPINand KEY adjustments are affected each other. So adjust these mutually if necessary.

� 43 �
