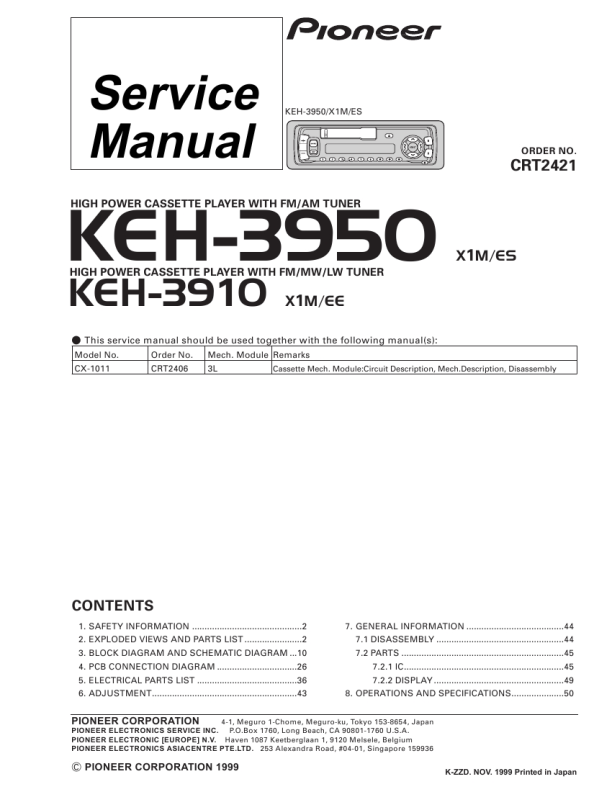

KEH-3950,3910
7. GENERAL INFORMATION
7.1. DISASSEMBLY
Cassette Mechanism Module - Remove the Case(not shown) 1. Remove the two screws. 2. Remove the Case. - Remove the Cassette Mechanism Module
(not shown)
1. Remove the four screws. 2.Disconnect the connector, and then remove the Cassette Mechanism module. - Remove the Panel Unit(Fig.1) Disengage the stopper at two locations indicated by arrow. Remove the Panel Unit.
Panel Unit
Fig.1
- Remove the Tuner Amp Unit(Fig.2)
Remove the two screws.
Remove the three screws.
Remove the screw.
Unbend the tabs at four locations indicated by arrow until straight. Remove the Tuner Amp Unit.
Tuner Amp Unit
Fig.2
44
|
|
|
> |
|
|
