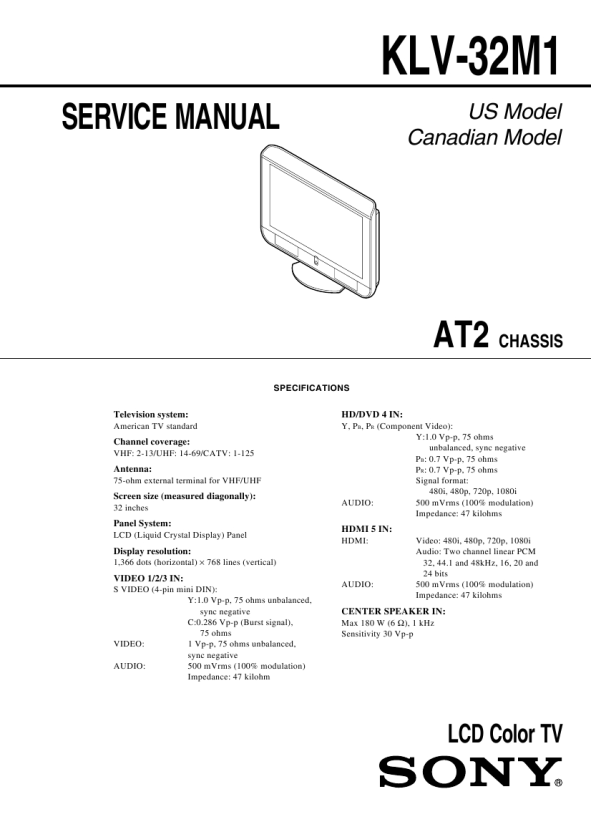

KLV-32M1
SERVICE MANUAL
US Model Canadian Model
AT2 CHASSIS
SPECIFICATIONS
Television system: American TV standard Channel coverage: VHF: 2-13/UHF: 14-69/CATV: 1-125 Antenna: 75-ohm external terminal for VHF/UHF Screen size (measured diagonally): 32 inches Panel System: LCD (Liquid Crystal Display) Panel Display resolution: 1,366 dots (horizontal) � 768 lines (vertical) VIDEO 1/2/3 IN: S VIDEO (4-pin mini DIN): Y:1.0 Vp-p, 75 ohms unbalanced, sync negative C:0.286 Vp-p (Burst signal), 75 ohms VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative AUDIO: 500 mVrms (100% modulation) Impedance: 47 kilohm
HD/DVD 4 IN: Y, PB, PR (Component Video): Y:1.0 Vp-p, 75 ohms unbalanced, sync negative PB: 0.7 Vp-p, 75 ohms PR: 0.7 Vp-p, 75 ohms Signal format: 480i, 480p, 720p, 1080i AUDIO: 500 mVrms (100% modulation) Impedance: 47 kilohms HDMI 5 IN: HDMI:
Video: 480i, 480p, 720p, 1080i Audio: Two channel linear PCM 32, 44.1 and 48kHz, 16, 20 and 24 bits 500 mVrms (100% modulation) Impedance: 47 kilohms
AUDIO:
CENTER SPEAKER IN: Max 180 W (6 �), 1 kHz Sensitivity 30 Vp-p
LCD Color TV
|
