KENWOOD KSW8100
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of KENWOOD KSW8100 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 TX9800 PIONEER Service Manual by Seth Butt;
Very good manual. Plenty of service information including alignment instructions. Clear circuit diagram. Excellent, thank you.
 PSFL1/C SONY Service Manual by luigi cella;
Good morning, the service manual you sent me was perfect. Your service and answering are excellent. I recomend this service. Best regards.
 HVMX100 AIWA Service Manual by Thomas Christoph;
I had been looking everywhere for a proper service manual for this VCR. Everywhere else that has this available for download has a very light version. This is the full service manual with all aspects that would interest anyone looking for the service manual for the AIWA HV-MX100 Worldwide VHS VCR. Great quality (as always). A winner hands down. Best Quality.
 PV9662 PANASONIC Service Manual by Thomas Christoph;
Top quality manual. Covers all aspects you'd expect in a top quality service manual for this Panasonic VHS VCR. The manual resolution is high. Another top quality manual from the only site worth downloading manuals from! If you're looking for a manual for the PV-9662 VHS VCR, this is the one you'll want to get!
 1300 NAD Service Manual by Heiko Rahnenführer;
complete part-lists and pcb layout, schematic diagram is good enlargable,

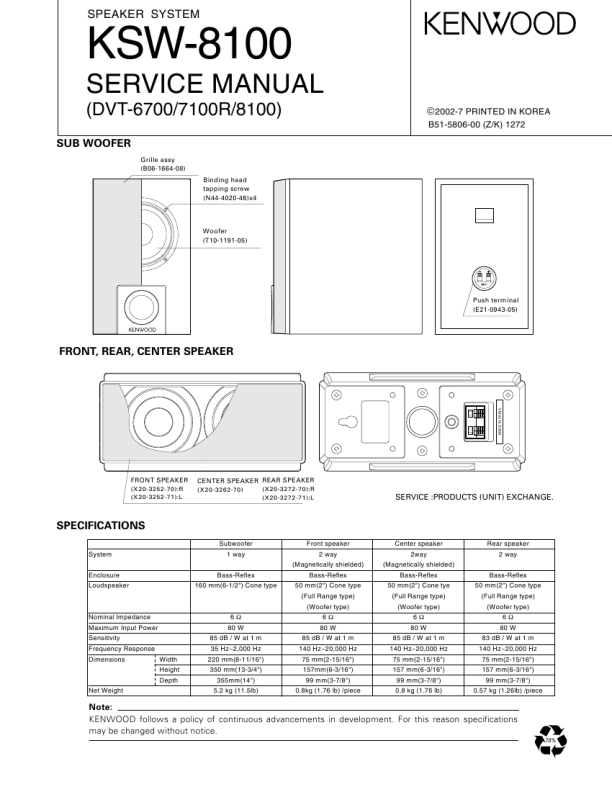

Text excerpt from page 1 (click to view)
SPEAKER SYSTEM

KSW-8100
SERVICE MANUAL
(DVT-6700/7100R/8100)
SUB WOOFER
Grille assy (B06-1664-08) Binding head tapping screw (N44-4020-46)x4

2002-7 PRINTED IN KOREA
B51-5806-00 (Z/K) 1272

Woofer (T10-1191-05)

Push terminal (E21-0943-05)

FRONT, REAR, CENTER SPEAKER

FRONT SPEAKER
(X20-3252-70):R (X20-3252-71):L

CENTER SPEAKER REAR SPEAKER
(X20-3262-70) (X20-3272-70):R (X20-3272-71):L

SERVICE :PRODUCTS (UNIT) EXCHANGE.

SPECIFICATIONS
System Enclosure Loudspeaker Subwoofer 1 way Bass-Reflex 160 mm(6-1/2") Cone type Front speaker 2 way (Magnetically shielded) Bass-Reflex 50 mm(2") Cone type (Full Range type) (Woofer type) 6� 80 W 85 dB / W at 1 m 140 Hz~20,000 Hz 75 mm(2-15/16") 157mm(6-3/16") 99 mm(3-7/8") 0.8kg (1.76 lb) /piece Center speaker 2way (Magnetically shielded) Bass-Reflex 50 mm(2") Cone tye (Full Range type) (Woofer type) 6� 80 W 85 dB / W at 1 m 140 Hz~20,000 Hz 75 mm(2-15/16") 157 mm(6-3/16") 99 mm(3-7/8") 0.8 kg (1.76 lb) Rear speaker 2 way Bass-Reflex 50 mm(2") Cone type (Full Range type) (Woofer type) 6� 80 W 83 dB / W at 1 m 140 Hz~20,000 Hz 75 mm(2-15/16") 157 mm(6-3/16") 99 mm(3-7/8") 0.57 kg (1.26lb) /piece

Nominal Impedance Maximum Input Power Sensitivity Frequency Response Dimensions Width Height Depth Net Weight

6� 80 W 85 dB / W at 1 m 35 Hz~2,000 Hz 220 mm(8-11/16") 350 mm(13-3/4") 355mm(14") 5.2 kg (11.5lb)

Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
