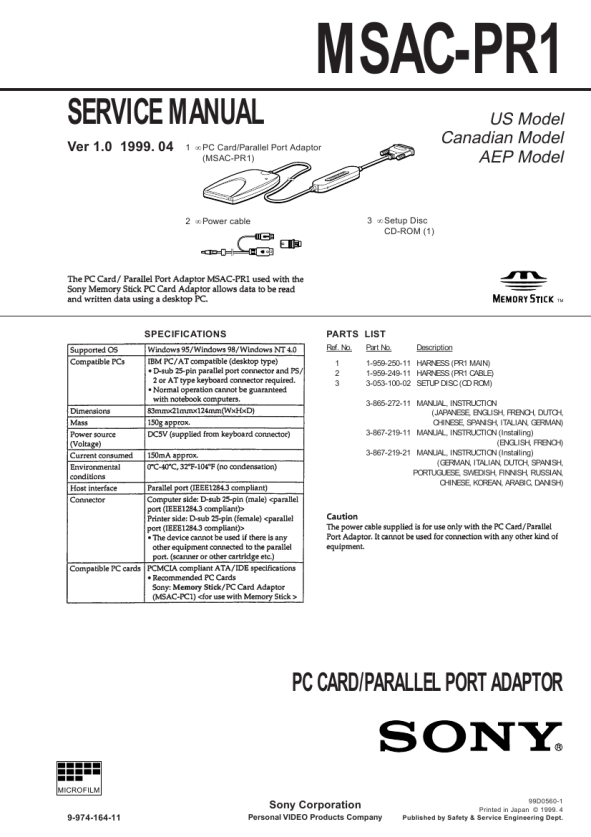

MSAC-PR1
SERVICE MANUAL
Ver 1.0 1999. 04
1 � PC Card/Parallel Port Adaptor (MSAC-PR1) 2 � Power cable 3 � Setup Disc CD-ROM (1)
US Model Canadian Model AEP Model
TM
SPECIFICATIONS
PARTS LIST
Ref. No. 1 2 3 Part No. Description 1-959-250-11 HARNESS (PR1 MAIN) 1-959-249-11 HARNESS (PR1 CABLE) 3-053-100-02 SETUP DISC (CD ROM) 3-865-272-11 MANUAL, INSTRUCTION (JAPANESE, ENGLISH, FRENCH, DUTCH, CHINESE, SPANISH, ITALIAN, GERMAN) 3-867-219-11 MANUAL, INSTRUCTION (Installing) (ENGLISH, FRENCH) 3-867-219-21 MANUAL, INSTRUCTION (Installing) (GERMAN, ITALIAN, DUTCH, SPANISH, PORTUGUESE, SWEDISH, FINNISH, RUSSIAN, CHINESE, KOREAN, ARABIC, DANISH)
PC CARD/PARALLEL PORT ADAPTOR
MICROFILM
Sony Corporation
9-974-164-11
Personal VIDEO Products Company
99D0560-1 Printed in Japan © 1999. 4 Published by Safety & Service Engineering Dept.
|
