CASIO MSG133L-2C
Owner's Manual

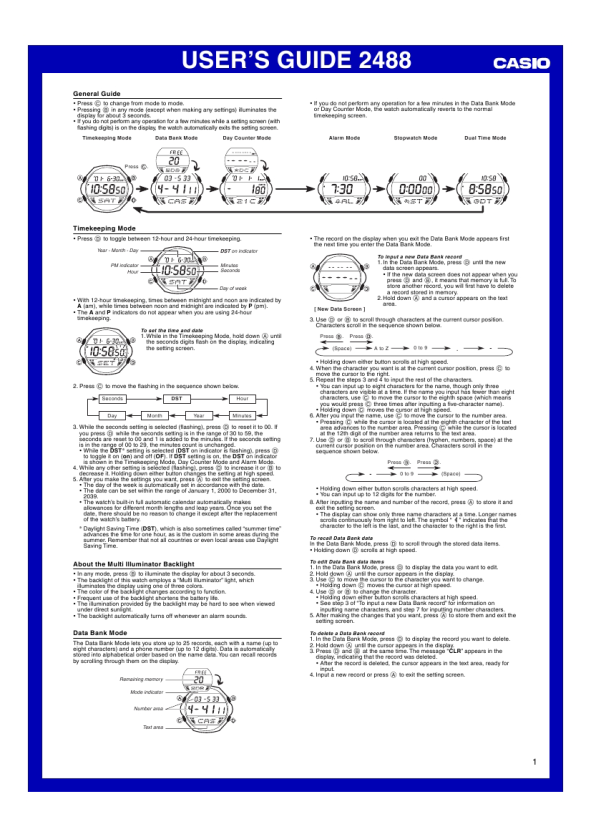

USER�S GUIDE 2488
Day Counter Mode
The Day Counter Mode lets you count the number of days from the Timekeeping Mode�s current date to a specific target date. This watch has five Day Counter records, each of which can be assigned up to 8 characters of text and a target date. Whenever the date specified by a day counter matches the date of the Timekeeping Mode (regardless of the day counter�s year setting), the DAYS indicator flashes on the Timekeeping Mode and Dual Time Mode screen. In the Day Counter Mode, the DAYS indicator flashes on the screen of the particular day counter whose date matches the date of the Timekeeping Mode. � The initial default date for all Day Counters is January 1, 2001.
Positive count value indicates a future date, while a negative value indicates a past date.

Stopwatch Mode
Hours 1/100 second Minutes

The Stopwatch Mode lets you measure elapsed time, split times, and two finishes. The range of the stopwatch is 23 hours, 59 minutes, 59.99 seconds. You can use the EL backlight by pressing B at any time while the stopwatch is operating.

Seconds Mode indicator

Mode indicator Year - Month - Day Target date Text

DAYS indicator Number of days

Elapsed time measurement Start Stop Re-start Stop Clear

� The day counter on the display when you exit the Day Counter Mode appears first the next time you enter the Day Counter Mode.
Recalling Day Counter Data

Split Time measurement Start Split Split release Stop Clear

In the Day Counter Mode, press D to scroll through the day counters.
To set the target date
Split time and 1st-2nd place times Start Split
First runner finishes.

1. In the Day Counter Mode, press D to display the day counter you want to set. 2. Hold down A until the flashing cursor appears in the text area. This indicates the input screen. 3. Press C to move the flashing in the sequence shown below. � Holding down C moves the cursor at high speed.
Press 1st digit Day Month . 8th digit Year

Stop
Second runner finishes. Record time of first runner.

Split release
Record time of second runner.

Clear

Dual Time Mode
AM indicator Home time Hour Minutes

The Dual Time Mode lets you keep track of the time in another time zone.
To set the dual time

4. While the cursor is in the text area, use D or B to scroll through characters at the current cursor position. Characters scroll in the sequence shown below. Holding down either button scrolls at high speed.
Press . Press . A to Z 0 to 9

(Space)

5. While the cursor is in the date area, press D to increase the number or B to decrease it. Holding down either button changes at high speed. � To clear a Day Counter record, press D and B at the same time while the cursor is in either the text area or number area. The message �CLR� appears on the display, the characters in the text area are deleted, and today�s date is set as the target date. After the clear operation is complete, you can create a new record by changing the date setting. 6. After you make the settings you want, press A to exit the input screen. � The date can be set within the range of January 1, 1940 to December 31, 2039.

Seconds Mode indicator

Press D to increase the time by 30 minutes. � Holding down D changes at high speed. � Press A to set current time as the dual time. You can then make any changes you want. � The format (12-hour and 24-hour) of the Dual Time matches the format you select in the Timekeeping Mode. � Changing the Timekeeping Mode setting causes a corresponding change in the Dual Time Mode time. If you ever need to change the Timekeeping Mode setting (say to set the time back three hours when you move from New York to Los Angeles), you should then make the necessary adjustment to the Dual Time Mode time (setting it back three hours, in this case).

Alarm Mode
AM indicator Current time Hour Minutes

When a Daily Alarm is turned on, the alarm sounds for 20 seconds each day when the current Timekeeping Mode time matches the alarm time setting. Note that the alarm setting has no relation to the Dual Time Mode time. Press any button to stop the alarm after it starts to sound. When the Hourly Time Signal is turned on, the watch beeps every hour on the hour. � The alarm on the display when you exit the Alarm Mode appears first the next time you enter the Alarm Mode.
To set the alarm time

Hourly time signal on indicator

Alarm on indicator Mode indicator

1. Hold down A until the hour digits start to flash on the display, indicating the setting screen. � At this time, the alarm is turned on automatically.

2. Press C to move the flashing in the sequence shown below.
Hour Minutes

3. Press D to increase the selected digits and B to decrease them. Holding down either button changes the setting at high speed. 4. After you set the alarm time, press A to exit the setting screen. � The format (12-hour and 24-hour) of the alarm time matches the format you select in the Timekeeping Mode. � When setting the alarm time using the 12-hour format, take care to set the time correctly as morning or afternoon.
To stop the alarm

Press any button to stop the alarm after it starts to sound.
To switch the daily Alarm and the Hourly Time Signal on and off

Press D while in the Alarm Mode to change the status of the Daily Alarm and Hourly Time Signal in the following sequence.

Both ON

Both OFF

Daily Alarm only

Hourly Time Signal only

To test the alarm

In the Alarm Mode, hold down D to sound the alarm. � Holding down D to test the alarm also changes the Daily Alarm or Hourly Time Signal on/off settings.

2
