NSX-RV25 NSX-RV28
HR(S) HR(S)

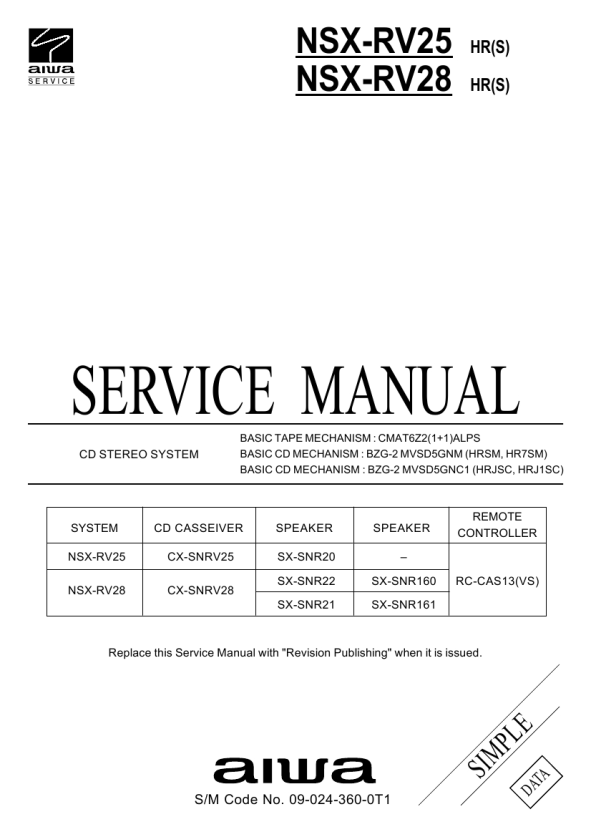

SERVICE MANUAL
CD STEREO SYSTEM
BASIC TAPE MECHANISM : CMAT6Z2(1+1)ALPS BASIC CD MECHANISM : BZG-2 MVSD5GNM (HRSM, HR7SM) BASIC CD MECHANISM : BZG-2 MVSD5GNC1 (HRJSC, HRJ1SC)
NSX-RV25 NSX-RV28
CX-SNRV25 CX-SNRV28
SX-SNR20 SX-SNR22 SX-SNR21
� SX-SNR160 SX-SNR161 RC-CAS13(VS)
Replace this Service Manual with "Revision Publishing" when it is issued.
M SI
S/M Code No. 09-024-360-0T1
P
LE
A T A
SYSTEM
CD CASSEIVER
SPEAKER
SPEAKER
REMOTE CONTROLLER
D
|
|
|
> |
|
