SECTION 1 SERVICING NOTES
[ NOTES ON USING �MEMORY STICK DUO� ]

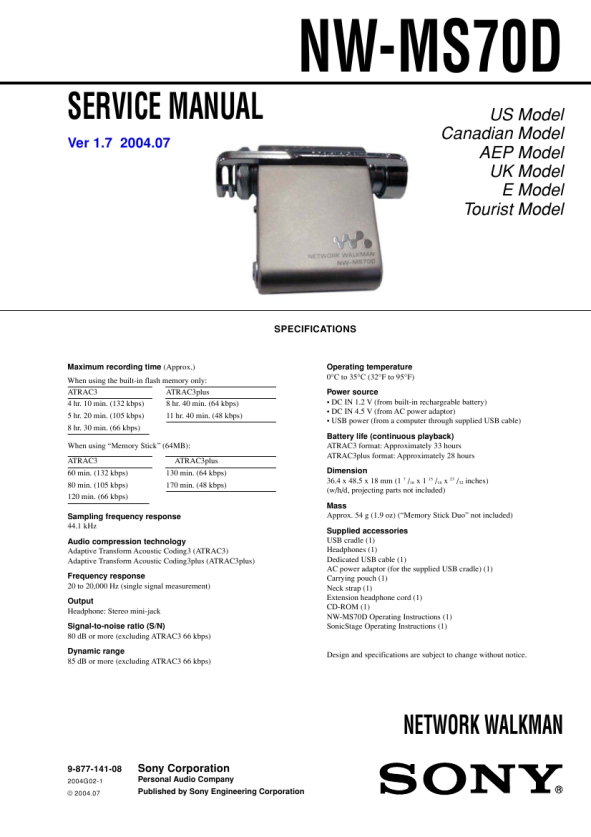

NW-MS70D
� Do not remove �Memory Stick Duo� during reading or writing data. � Data may be damaged in the following cases. � The Network Walkman is removed from the USB cradle or the dedicated USB cable is unplugged while reading or writing data. � The �Memory Stick� is used in a location subject to static electricity or electric noise. � Creating backup copies of important data is recommended.
[ NOTES ON FORMATTING (INITIALIZING) ]
�Memory Stick Duo� is shipped with a FAT format as the standard format. To format �Memory Stick�, please use devices conformable with the �Memory Stick�. If �Memory Stick� is formatted using Windows Explorer, �FORMAT ERROR� will be displayed and audio files cannot be played on the Network Walkman. On Windows XP, you can format �Memory Stick� properly. When you format �Memory Stick�, always perform either one of the following: � Follow the instructions of �Formatting memory�. � Format using the supplied Sonic Stage software. For details on how to format using the Sonic Stage software, refer to �Sonic Stage Online Help: Formatting MG Memory Stick�.
[ DISPLAYING ON WINDOWS EXPLORER ]
When you connect Network Walkman to your computer with the supplied USB cable, you can display the data stored on �Memory Stick� or built-in flash memory as an external drive (for example, as the D drive) using Windows Explorer. � Data checked out with the Sonic Stage software will be stored in a �HIFI� folder. Do not edit data stored in the �HIFI� folder using Windows Explorer. Data copied or edited using Windows Explorer cannot be played on your Network Walkman. � You can display data that has been stored on other �Memory Stick� compatible devices (JPEG,MPEG format, etc.,). For in formation on how to handle data except in the �HIFI� folder, refer to the instruction manual that comes with the equipment with which the recording has been done.
SECTION 2 GENELAL
This section is extracted from instruction manual.
Locating controls
For details about each part, refer to the pages in parentheses.
Network Walkman
Front side Rear side
1 VOL (+/�) control 2 Headphone plug 3 Plug cover 4 SOUND/AVLS button 5 �Memory Stick� Eject button
6 Display 7 Shuttle switch 8 Play/Stop button 9 RESET button 0 USB cradle connector
qa HOLD (Locking controls) switch qs MENU button You can switch to the Time display by pressing the MENU button for a while. qd Access lamp qf �Memory Stick� slot
3
