This is a good quality scan of the Operation & Maintenance (Service) Manual for the PAL version of this high-band broadcast umatic, BVU-800P
All schematics and lineup procedures appear to be included in this one manual AFAICT.
The file size is just over 113 MB which gives an idea of the quality and number of pages.
All of the schematics, which contain some fairly small print, are easily readable when you zoom into the page.
John Thompson, Newcastle Upon Tyne, England.
;
Good quality, all schematics of few of models. There is also short form of user manual and regulation manual.
;
Perfect copy of the service manual. you can enlarge every page, and it comes up
with all details.
;
It´s very very nice manual with all, what i need. Original in good quality. Very fast business. Very much thanks...
;
Purchased the manual that I was looking for at a great price and could download it easily.. Great service experience and for future purchases I plan to use the site.
Thank you very much

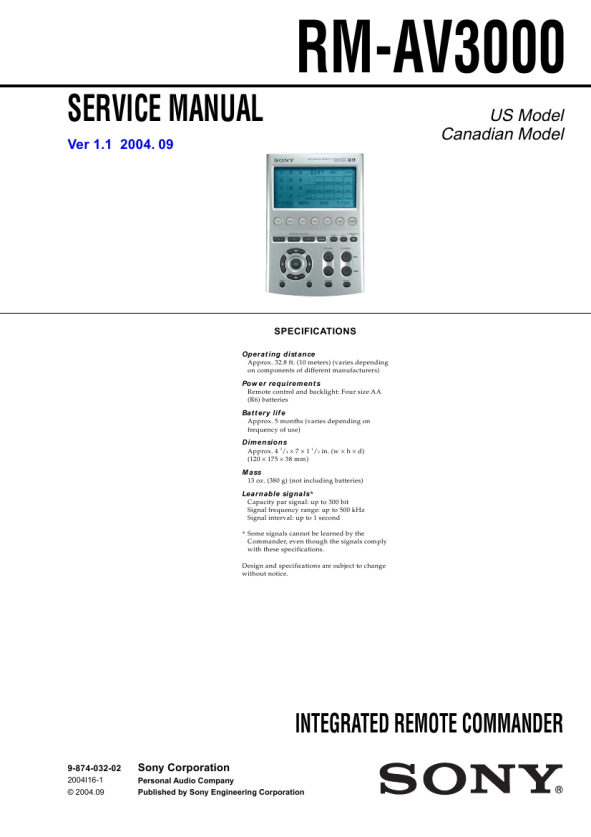

RM-AV3000
qf EXIT button (page 89) Used to exit the setting menu. qg MENU button (page 88) Calls up the menu display of the buttons or keys that have menu function. qh OK button and Cursor Control buttons (page 9, 64, 88) qj SYSTEM CONTROL buttons (page 31) You can program up to 32 consecutive key operations to each of the three SYSTEM CONTROL buttons . You can automatically carry out the entire program by pressing one button. qk MORE button (page 32) Label keys change in the order from the first stage to the third stage and come back to the first, and so on, each time you press the MORE button in the system mode.
* Note on the VOLUME +/� and MUTING buttons
The Commander controls or mutes the TV�s volume when you select a visual component. The Commander controls or mutes the amplifier�s volume when you select an audio component. You can change this setting also (page 29).
Setting the Clock
Setting the clock for the first time after installing batteries
For the first time after installing batteries, the Commander is in the clock setting mode. �CLOCK� is displayed on the Mode Display key, and � �:� �� flashes on the Clock Display key, and �STD TIME� and �DS TIME� on the Label keys are flashing.
1 Select STD TIME (standard time)
or DS TIME (daylight saving time).
If the summer time (daylight saving time) is used in your area, press the DS TIME key when it is in the summer time. If not, press the STD TIME key. If the summer time is not used in your area, press the STD TIME key.
or
Note on the power on and off of the display of the Commander
To turn on the display, press any button except the COMMANDER OFF button. To turn off the display, press COMMANDER OFF, or if you don�t use the Commander, the display automatically turns off after 10 minutes. This interval can also be changed (page 74).
The selected STD TIME or DS TIME key lights. �SET� and �SU� flash and �12:00 AM� lights on the Clock Display key.
4
|
|
|
> |
|
