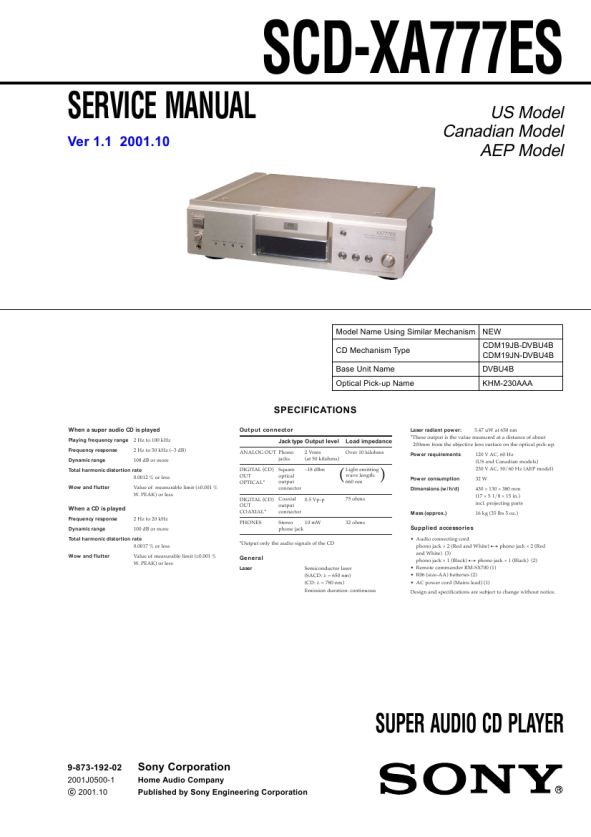

SONY SCDXA777ES
Service Manual

SCD-XA777ES

4-3. SACD (DL) DISC OPERATION CHECK (� Perform as necessary) The stability of the set can be checked by repeating the combined operation of focus jump (layer 0t1, layer 1t0) and access to the most inward trackymost outward track by the set number of times or until an error occurs using the dual layer HD disc, DL disc. A set of operation including an access to the layer 0 (most inward track)tlayer 0 (most outward track)tfocus jump (layer 0t1)tlayer 1 (most outward track)tlayer 1 (most inward track)tfocus jump (layer 1t0) is carried out repeatedly by the set number of times. Checking Method: 1. After setting the test mode, rotate the [l AMS L] dial to select �92. SET CHECK� and press the [ l AMS L] dial to enter. 2. When �SET TEST START� is displayed, rotate the [l AMS L] dial clockwise by 3 clicks to display �2. F.JMP CHECK?�. 3. Press the [OPEN/CLOSE] button to open the tray, and place the DL disc. 4. Press the [l AMS L] dial to load the tray into the set. 5. �NOW SET UP� will be displayed and the DL disc setup will start. (It takes about ten and several seconds to set up the disc as two layers of layer 0 and layer 1 are adjusted) 6. At the completion of setup, �F.JUMP TIMES� will be displayed. 7. Rotate the [ l AMS L] dial clockwise by 5 clicks to display �5�. (If 5 sets of operation is executed *1) 8. Press the [l AMS L] dial, and the check will start. 9. Immediately when the check finished, �UP MAX ssss�t�UP AVE ssss�t�DW MAX ssss�t�DW AVE ssss�t�F.JMP OK [TIMES]� will be displayed repeatedly. (s denotes the measured value in msec) UP MAX: Max time required for layer 0 (most inward track)tlayer 0 (most outward track)tfocus jump (layer 0t1) UP AVE: Average time required for layer 0 (most inward track)tlayer 0 (most outward track)tfocus jump (layer 0t1) DW MAX: Max time required for layer 1 (most outward track)tlayer 1 (most inward track)tfocus jump (layer 1t0) DW AVE: Average time required for layer 1 (most outward track)tlayer 1 (most inward track)tfocus jump (layer 1t0) Specified value: 7000 msec or less (if no error occurred) If an error occurred due to defocusing during the checking, refer to the following error list. (26 page) 10. Press the [OPEN/CLOSE] button, and the disc will be ejected and the check will finish. Also, if the [ l AMS L] dial is pressed in step 9, �2. F.JUMP CHK OK� will be displayed. Then, if the [ l AMS L dial is again pressed, �2. F.JMP ] CHECK� will be displayed instantaneously and a recheck is enabled from the step 5 in the same manner. *1 Setting arbitrary number of times instead of 5 allows the checking to be repeated by the set number of times. Also, setting 0 (zero) allows the aging check to be repeated until an error occurs.

4-4. HYBRID DISC OPERATION CHECK (� Perform as necessary) This test checks the auto adjustment time required when the disc is switched between HD (SACD) layer and CD layer. This test is conducted to check the stability in switching from CD to SACD, or SACD to CD in the HYBRID disc. A set of operation including CD layer stop statetHD layer auto adjustmenttHD layer TOC readingtHD layer stop statetCD layer auto adjustmenttCD layer TOC readingtCD layer stop state is repeated by the set number of times. Checking Method: 1. After setting the test mode, rotate the [l AMS L] dial to select �92. SET CHECK� and press the [l AMS L] dial to enter. 2. When �SET TEST START� is displayed, rotate the [l AMS L] dial clockwise by 4 clicks to display �3. HYB CHECK?�. 3. Press the [OPEN/CLOSE] button to open the tray, and place the HYBRID disc. 4. Press the [l AMS L] dial to load the tray into the set. 5. �NOW SET UP� will be displayed and the HYBRID disc setup will start. (It takes about several seconds to set up the disc *1) 6. At the completion of setup, �CHANGE TIMES?� will be displayed. 7. Rotate the [l AMS L] dial clockwise by 5 clicks to display �5� (if 5 sets of operation is executed *2) 8. Press the [ lAMSL dial, and �START� will be displayed ] and the check will start. During the check, the following will be displayed. �CD�>HD� display: Time from switching from CD layer to HD layer up to start of play is measured. �HD�>CD� display: Time from switching from HD layer to CD layer up to start of play is measured. 9. Immediately when the check finished, �CD MAX ssss�t�CD AVE ssss�t�HD MAX ssss�t�HD AVE ssss� will be displayed repeatedly. (s denotes the measured value in msec) Specified value: 10000 msec or less (if no error occurred) If an error occurred due to defocusing during the checking, refer to the following error list. (26 page) 10. Press the [OPEN/CLOSE] button, and the disc will be ejected and the check will finish. Also, if the [ l AMS L] dial is pressed in step 9, �HYB CHK OK� will be displayed. Then, if the [ lAMSL dial is again pressed, �HYBRID CHECK� ] will be displayed instantaneously and a recheck is enabled from the step 5 in the same manner. *1 �NOW SET UP� display may continue for several minutes and an error may be displayed depending on the discs. In this case, press the [l AMS L] dial again. *2 Setting arbitrary number of times instead of 5 allows the checking to be repeated by the set number of times. Also, setting 0 (zero) allows the aging check to be repeated until an error occurs.

25
