El producto satisface las necesidades del servicio t
;
This is a good quality scan of the Operation & Maintenance (Service) Manual for the PAL version of this high-band broadcast umatic, BVU-800P
All schematics and lineup procedures appear to be included in this one manual AFAICT.
The file size is just over 113 MB which gives an idea of the quality and number of pages.
All of the schematics, which contain some fairly small print, are easily readable when you zoom into the page.
John Thompson, Newcastle Upon Tyne, England.
;
Good quality, all schematics of few of models. There is also short form of user manual and regulation manual.
;
Perfect copy of the service manual. you can enlarge every page, and it comes up
with all details.
;
It´s very very nice manual with all, what i need. Original in good quality. Very fast business. Very much thanks...

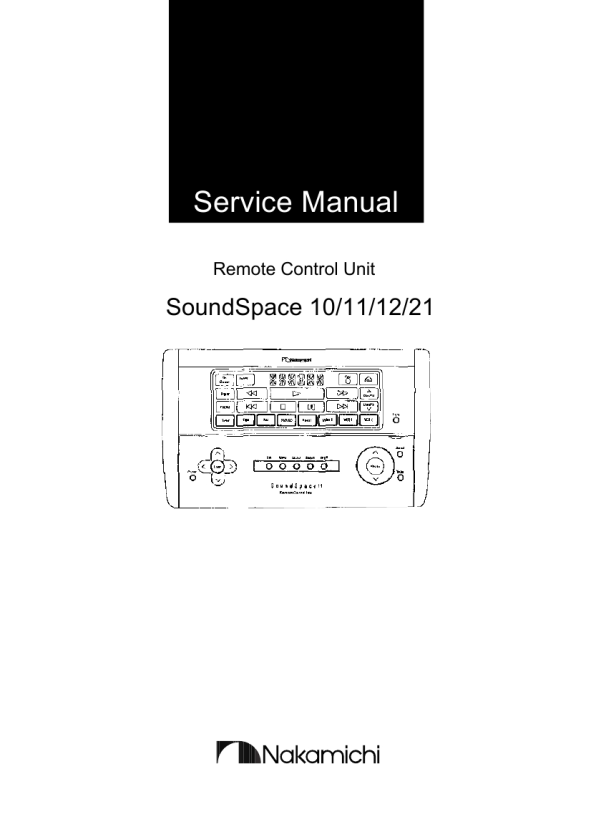

Remote Control Unit (SS-10/11/12/21)
CONTENTS
1. 2. 3. 4. 5. 6. 7. REMOVAL PROCEDURES ................................................................................................................................ MECHANISM ASS'Y AND PARTS LIST ........................................................................................................... MOUNTING DIAGRAMS AND PARTS LIST ..................................................................................................... 3.1. Main P.C.B. Ass'y/Sensor P.C.B. Ass'y ................................................................................................. IC BLOCK DIAGRAMS ...................................................................................................................................... BLOCK DIAGRAM ............................................................................................................................................. WIRING DIAGRAM ............................................................................................................................................ SCHEMATIC DIAGRAM .................................................................................................................................... 2 3 5 5 8 10 11 12
1.
REMOVAL PROCEDURES
(3) Remove screws F06 (4 pcs.) to detach F07 (Main P.C.B. Ass'y) from F05 (Front Panel Ass'y). (4) Remove screws F08 (2 pcs.) to detach F09 (Sensor P.C.B. Ass'y) from F04 (Bottom Cabinet Ass'y).
Refer to Figs. 1.1 to 1.3. (1) Open F01 (Battery Cover). (2) Remove screws F02 (4 pcs.), F03 (1 pce.) to detach F04 (Bottom Cabinet Ass'y) and F05 (Front Panel Ass'y).
Fig. 1.2
Fig. 1.1
Fig. 1.3
2
|
|
|
> |
|
