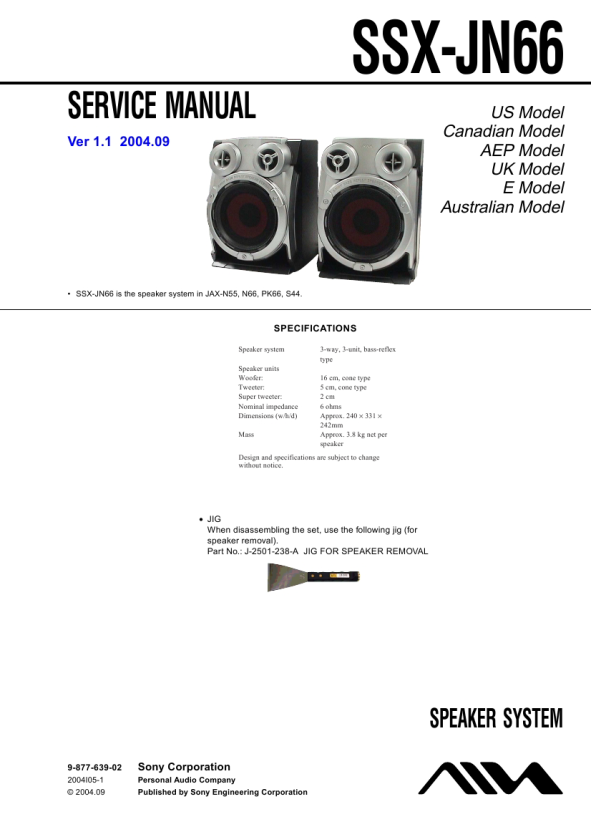

SSX-JN66
Ver 1.1
EXPLODED VIEW
NOTE: � -XX and -X mean standardized parts, so they may have some difference from the original one. � Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) � � Parts Color Cabinet's Color � Items marked �*� are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. � The mechanical parts with no reference number in the exploded views are not supplied. � Accessories are given in the last of the electrical parts list.
Note: This is the figure of Lch set.
1
2
4
3
Ref. No. 1 1 2
Part No.
Description
Remark
Ref. No. 2 3 4
Part No.
Description
Remark
A-4714-427-A SYSTEM (L) ASSY (Lch) A-4714-428-A SYSTEM (R) ASSY (Rch) A-1058-015-A PANEL (L) ASSY, FRONT (Lch)
A-1058-017-A PANEL (R) ASSY, FRONT (Rch) 4-254-252-01 FOOT (FRONT) 4-254-253-01 FOOT (REAR)
2
|
|
|
> |
|
