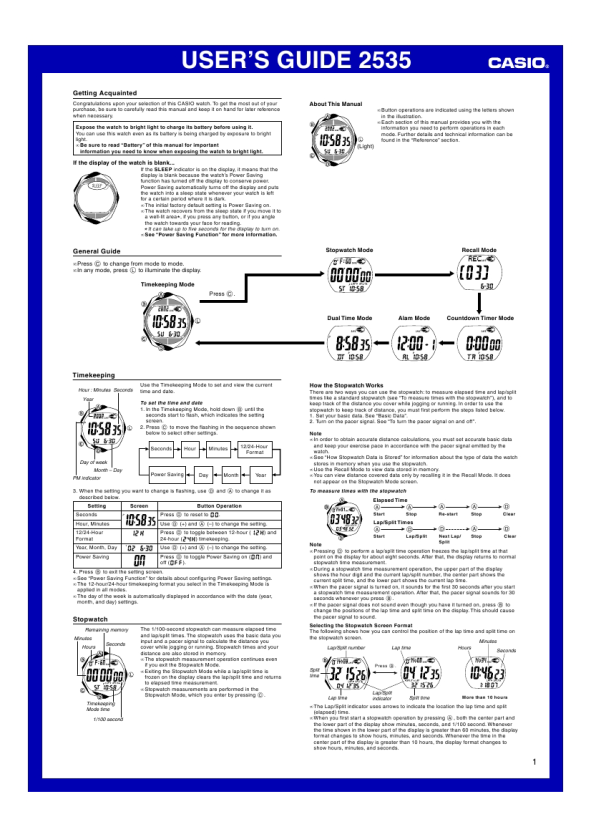

USER�S GUIDE 2535
How Stopwatch Data is Stored The following table describes how data is stored when you perform the various button operations described in �To measure times with the stopwatch�. Stopwatch Button Operation A Start (from all zeros) A Stop A Re-start D Lap/Split D Clear Data Store Operation Creates a new log: current date and distance (updated as timing progresses) Time measurement stops, without storing data in memory. Time measurement re-starts, without storing data in memory. Creates new record: displayed lap/split times Creates new record: displayed lap/split times (Stopwatch display is cleared to all zeros.)
Backlight Precautions
� The electro-luminescent panel that provides illumination loses power after very long use. � The illumination provided by the backlight may be hard to see when viewed under direct sunlight. � The watch may emit an audible sound whenever the display is illuminated. This is due to vibration of the EL panel used for illumination, and does not indicate malfunction. � The backlight automatically turns off whenever an alarm sounds. � Frequent use of the backlight runs down the battery. Auto light switch precautions � Wearing the watch on the inside of your wrist and movement or vibration of your arm can cause the auto light switch to activate and illuminate the display. To avoid running down the battery, turn off the auto light switch whenever engaging in activities that might cause frequent illumination of the display.
More than 15 degrees too high
� The backlight may not light if the face of the watch is more than 15 degrees above or below parallel. Make sure that the back of your hand is parallel to the ground. � The backlight turns off in about one second, even if you keep the watch pointed towards your face. � Static electricity or magnetic force can interfere with proper operation of the auto light switch. If the backlight does not light, try moving the watch back to the starting position (parallel with the ground) and then tilt it back toward you again. If this does not work, drop your arm all the way down so it hangs at your side, and then bring it back up again. � Under certain conditions, the backlight may not light until about one second after you turn the face of the watch towards you. This does not necessarily indicate malfunction of the backlight.
5
|
|
|
> |
|
