ADJUSTMENT
1. Head Azimuth Adjustment Settings : � Test tape : TTS-930 � Test point : Phone Jack (J1) � Tape speed : 2.4cm/sec � Adjustment location : Head azimuth adjustment screw Method : Play back the 5kHz signal of the test tape (TTS-930) and adjust screw so that the output becomes maximum. 2. Tape Speed Adjustment (2.4cm/sec) Settings : � Test tape : TTS-900 � Test point : Phone Jack (J1) � Volume : MAX � Adjustment location : SFR1 Method : Play back the test tape (TTS-900) and adjust SFR1 so that the tape speed becomes 3000Hz ± 10Hz. 3. Tape Speed Adjustment (1.2cm/sec) Settings : � Test tape : TTS-910 � Test point : Phone Jack (J1) � Volume : MAX � Adjustment location : SFR2 Method : Play back the test tape (TTS-910) and adjust SFR2 so that the tape speed becomes 3000Hz ± 90Hz.
�7�

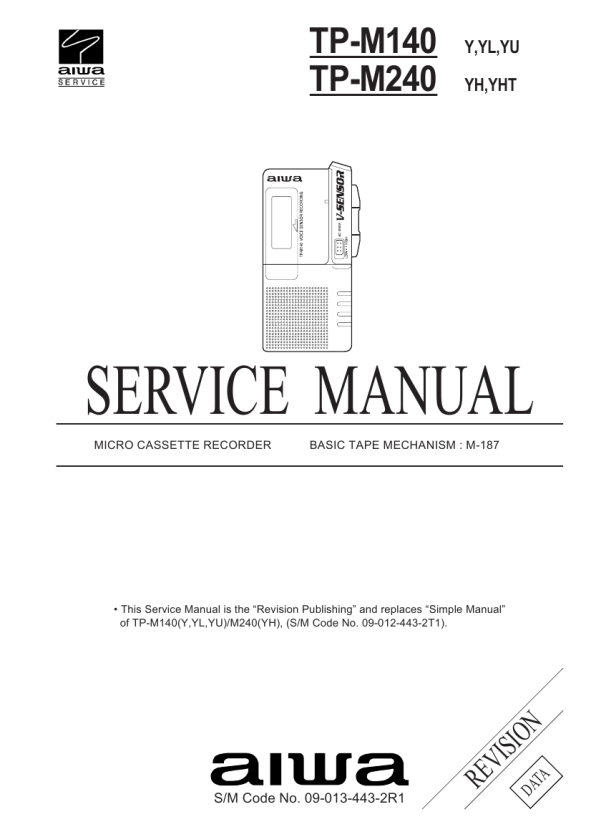

 $4.99 TPM140 AIWA
Owner's Manual Complete owner's manual in digital format. The manual will be available for download as PDF file aft…
|
|
|
> |
|
