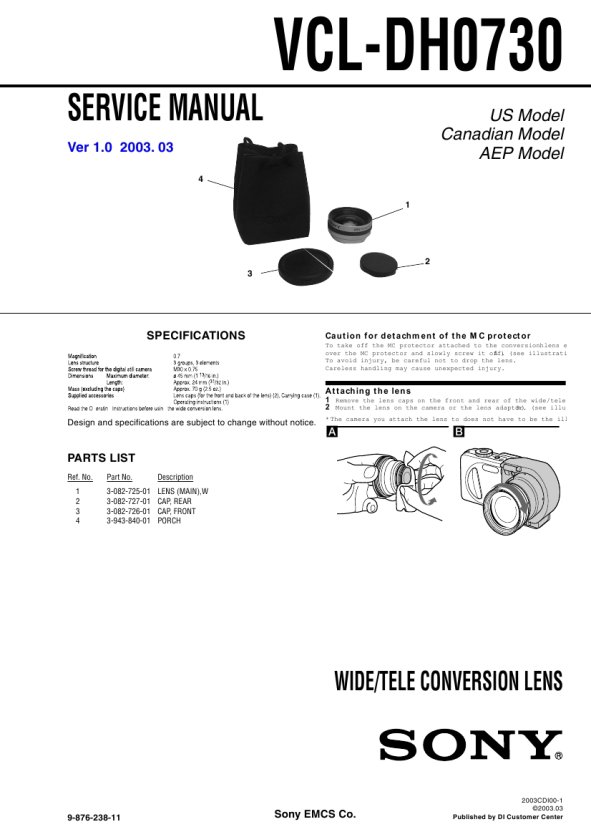

VCL-DH0730
SERVICE MANUAL
Ver 1.0 2003. 03
4 1
US Model Canadian Model AEP Model
2 3
SPECIFICATIONS
Caution for detachment of the MC protector
To take off the MC protector attached to the conversionh lens e over the MC protector and slowly screw it off. (see illustrati A) To avoid injury, be careful not to drop the lens. Careless handling may cause unexpected injury.
Attaching the lens
1 Remove the lens caps on the front and rear of the wide/tele 2 Mount the lens on the camera or the lens adaptor. (see illu B)
Design and specifications are subject to change without notice.
* The camera you attach the lens to does not have to be the ill
A
B
PARTS LIST
Ref. No. 1 2 3 4 Part No. 3-082-725-01 3-082-727-01 3-082-726-01 3-943-840-01 Description LENS (MAIN),W CAP, REAR CAP, FRONT PORCH
WIDE/TELE CONVERSION LENS
9-876-238-11
Sony EMCS Co.
2003CDI00-1 ©2003.03 Published by DI Customer Center
|
|
|
> |
|
