VCL-HG0730

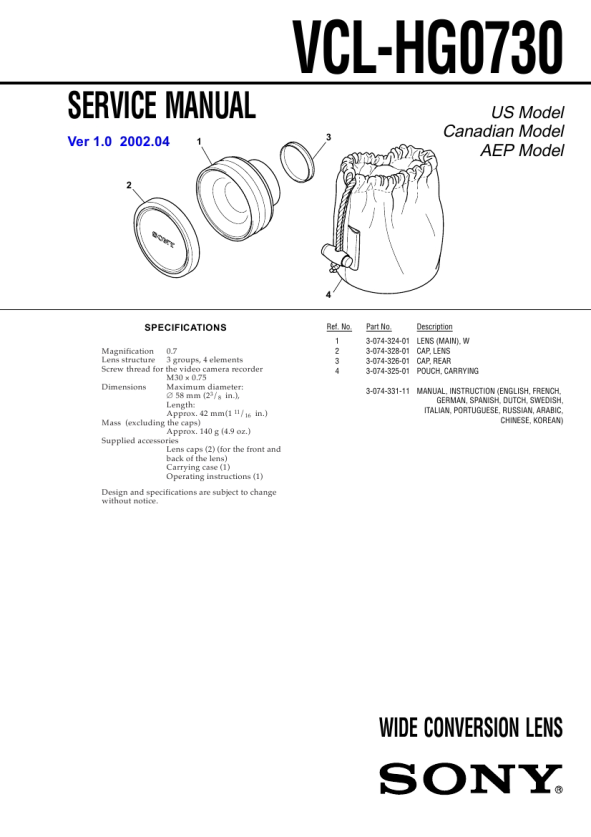

SERVICE MANUAL
Ver 1.0 2002.04
1 2 3
US Model Canadian Model AEP Model
4 SPECIFICATIONS
Magnification 0.7 Lens structure 3 groups, 4 elements Screw thread for the video camera recorder M30 � 0.75 Dimensions Maximum diameter: � 58 mm (23/8 in.), Length: Approx. 42 mm(1 11/16 in.) Mass (excluding the caps) Approx. 140 g (4.9 oz.) Supplied accessories Lens caps (2) (for the front and back of the lens) Carrying case (1) Operating instructions (1) Design and specifications are subject to change without notice.
Ref. No. 1 2 3 4 Part No. 3-074-324-01 3-074-328-01 3-074-326-01 3-074-325-01 Description LENS (MAIN), W CAP, LENS CAP, REAR POUCH, CARRYING
3-074-331-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, SPANISH, DUTCH, SWEDISH, ITALIAN, PORTUGUESE, RUSSIAN, ARABIC, CHINESE, KOREAN)
WIDE CONVERSION LENS
|
