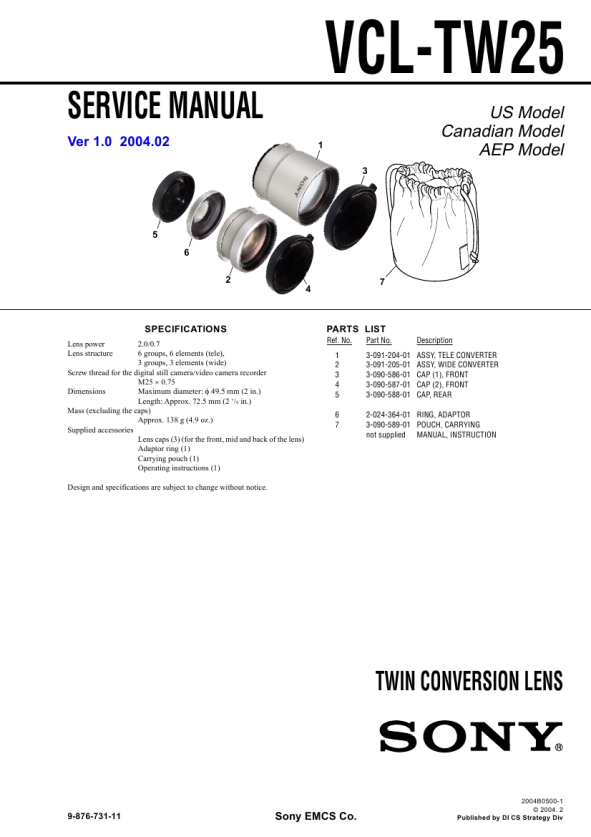

VCL-TW25
SERVICE MANUAL
Ver 1.0 2004.02
1 3
US Model Canadian Model AEP Model
5 6 2 7
4
SPECIFICATIONS
Lens power Lens structure 2.0/0.7 6 groups, 6 elements (tele), 3 groups, 3 elements (wide) Screw thread for the digital still camera/video camera recorder M25 � 0.75 Dimensions Maximum diameter: � 49.5 mm (2 in.) Length: Approx. 72.5 mm (2 7/8 in.) Mass (excluding the caps) Approx. 138 g (4.9 oz.) Supplied accessories Lens caps (3) (for the front, mid and back of the lens) Adaptor ring (1) Carrying pouch (1) Operating instructions (1) Design and specifications are subject to change without notice.
PARTS LIST
Ref. No. 1 2 3 4 5 6 7 Part No. 3-091-204-01 3-091-205-01 3-090-586-01 3-090-587-01 3-090-588-01 Description ASSY, TELE CONVERTER ASSY, WIDE CONVERTER CAP (1), FRONT CAP (2), FRONT CAP, REAR
2-024-364-01 RING, ADAPTOR 3-090-589-01 POUCH, CARRYING not supplied MANUAL, INSTRUCTION
TWIN CONVERSION LENS
9-876-731-11
Sony EMCS Co.
2004B0500-1 © 2004. 2 Published by DI CS Strategy Div
 $4.99 VCLTW25 SONY
