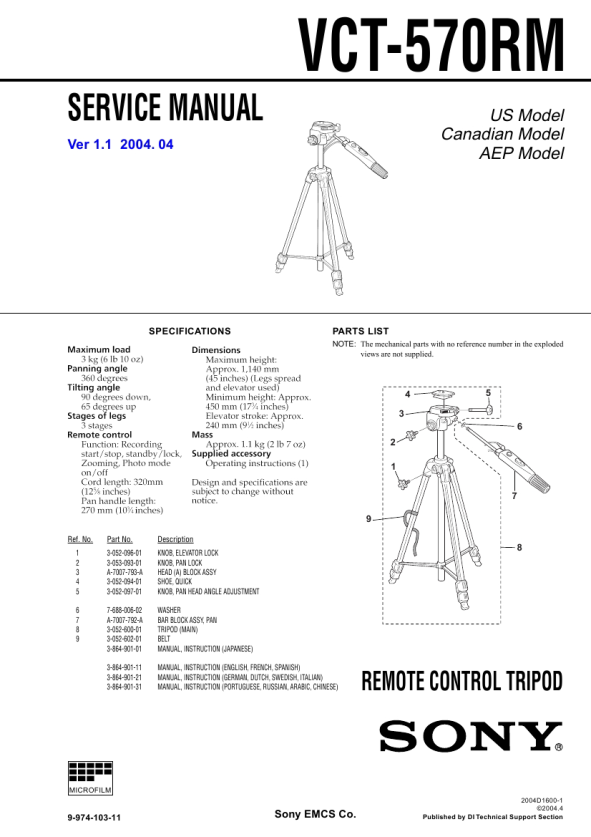

VCT-570RM
SERVICE MANUAL
Ver 1.1 2004. 04
US Model Canadian Model AEP Model
SPECIFICATIONS
PARTS LIST
NOTE: The mechanical parts with no reference number in the exploded views are not supplied.
4 3
5 6
2 1 7 9
Ref. No. 1 2 3 4 5 6 7 8 9 Part No. 3-052-096-01 3-053-093-01 A-7007-793-A 3-052-094-01 3-052-097-01 7-688-006-02 A-7007-792-A 3-052-600-01 3-052-602-01 3-864-901-01 3-864-901-11 3-864-901-21 3-864-901-31 Description KNOB, ELEVATOR LOCK KNOB, PAN LOCK HEAD (A) BLOCK ASSY SHOE, QUICK KNOB, PAN HEAD ANGLE ADJUSTMENT WASHER BAR BLOCK ASSY, PAN TRIPOD (MAIN) BELT MANUAL, INSTRUCTION (JAPANESE) MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH) MANUAL, INSTRUCTION (GERMAN, DUTCH, SWEDISH, ITALIAN) MANUAL, INSTRUCTION (PORTUGUESE, RUSSIAN, ARABIC, CHINESE)
8
REMOTE CONTROL TRIPOD
MICROFILM
9-974-103-11
Sony EMCS Co.
2004D1600-1 ©2004.4 Published by DI Technical Support Section
|
|
|
> |
|
