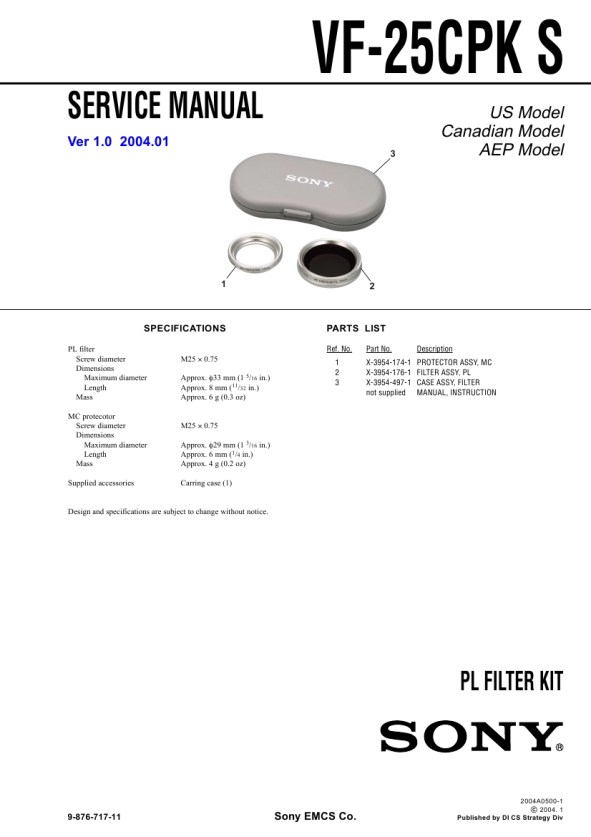

VF-25CPK S
SERVICE MANUAL
Ver 1.0 2004.01
3
US Model Canadian Model AEP Model
1
2
SPECIFICATIONS
PL filter Screw diameter Dimensions Maximum diameter Length Mass MC protecotor Screw diameter Dimensions Maximum diameter Length Mass Supplied accessories M25 � 0.75 Approx. �33 mm (1 /16 in.) Approx. 8 mm (11/32 in.) Approx. 6 g (0.3 oz)
5
PARTS LIST
Ref. No. 1 2 3 Part No. X-3954-174-1 X-3954-176-1 X-3954-497-1 not supplied Description PROTECTOR ASSY, MC FILTER ASSY, PL CASE ASSY, FILTER MANUAL, INSTRUCTION
M25 � 0.75 Approx. �29 mm (1 3/16 in.) Approx. 6 mm (1/4 in.) Approx. 4 g (0.2 oz) Carring case (1)
Design and specifications are subject to change without notice.
PL FILTER KIT
9-876-717-11
Sony EMCS Co.
2004A0500-1 C 2004. 1 Published by DI CS Strategy Div
|
|
|
> |
|
