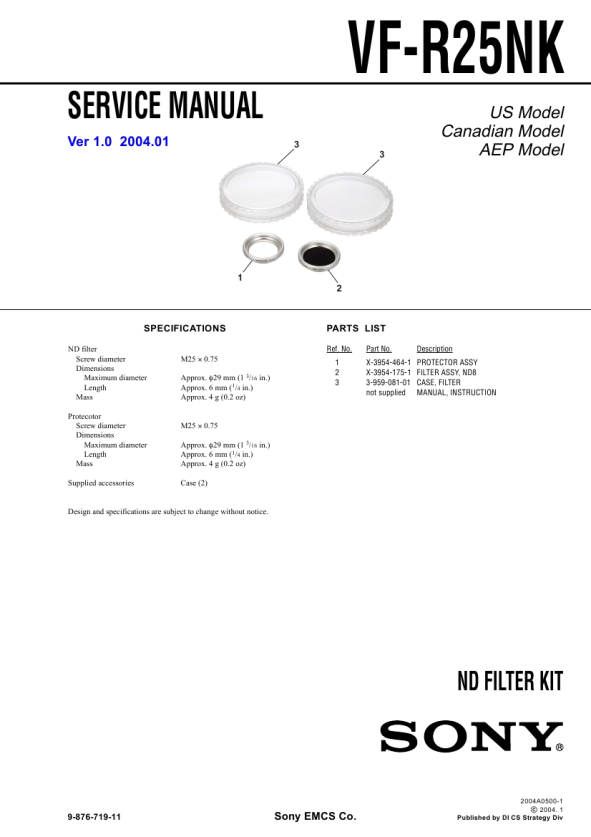

VF-R25NK
SERVICE MANUAL
Ver 1.0 2004.01
3 3
US Model Canadian Model AEP Model
1 2
SPECIFICATIONS
ND filter Screw diameter Dimensions Maximum diameter Length Mass Protecotor Screw diameter Dimensions Maximum diameter Length Mass Supplied accessories M25 � 0.75 Approx. �29 mm (1 /16 in.) Approx. 6 mm (1/4 in.) Approx. 4 g (0.2 oz)
3
PARTS LIST
Ref. No. 1 2 3 Part No. X-3954-464-1 X-3954-175-1 3-959-081-01 not supplied Description PROTECTOR ASSY FILTER ASSY, ND8 CASE, FILTER MANUAL, INSTRUCTION
M25 � 0.75 Approx. �29 mm (1 3/16 in.) Approx. 6 mm (1/4 in.) Approx. 4 g (0.2 oz) Case (2)
Design and specifications are subject to change without notice.
ND FILTER KIT
9-876-719-11
Sony EMCS Co.
2004A0500-1 C 2004. 1 Published by DI CS Strategy Div
|
|
|
> |
|
