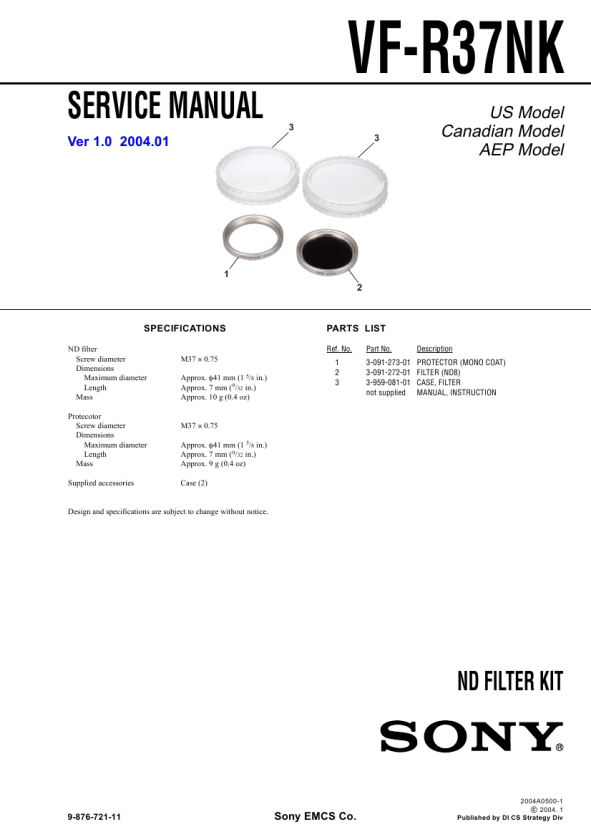

VF-R37NK
SERVICE MANUAL
Ver 1.0 2004.01
3 3
US Model Canadian Model AEP Model
1 2
SPECIFICATIONS
ND filter Screw diameter Dimensions Maximum diameter Length Mass Protecotor Screw diameter Dimensions Maximum diameter Length Mass Supplied accessories M37 � 0.75 Approx. �41 mm (1 /8 in.) Approx. 7 mm (9/32 in.) Approx. 10 g (0.4 oz)
5
PARTS LIST
Ref. No. 1 2 3 Part No. 3-091-273-01 3-091-272-01 3-959-081-01 not supplied Description PROTECTOR (MONO COAT) FILTER (ND8) CASE, FILTER MANUAL, INSTRUCTION
M37 � 0.75 Approx. �41 mm (1 5/8 in.) Approx. 7 mm (9/32 in.) Approx. 9 g (0.4 oz) Case (2)
Design and specifications are subject to change without notice.
ND FILTER KIT
9-876-721-11
Sony EMCS Co.
2004A0500-1 C 2004. 1 Published by DI CS Strategy Div
