DISASSEMBLY
To Flowchart
wf STAND COVER
1 Remove three screws.
7 TOP STAND COVER 8
STAND CABLE CLAMP
Instructions for installation
Wire thick cord to the right side to avoid jamming of thin cord. Thick cord
Ref. No. B5
2 Unhook one hook.
4
FRONT STAND COVER ASSY
3 Remove the REAR START SHIELD. 4 Remove one screw.
Ref. No. B3
Instructions for installation
Hold down SWITCHING POWER SUPPLY cord to the direction of the arrow as possible to prevent hiding the screw hole. Screw hole
0
9
5
6
5 Unhook one hook. 6 Remove the STAND CABLE CLAMP in the direction of arrow. 7 Remove two screws.
Ref. No. B5
qa qs qa 3
1
8 Unhook four hooks. 9 Remove the TOP STAND COVER in the direction of arrow. 0 Remove three screws.
2
Ref. No. B5
REAR START SHIELD
1
qa Unhook four hooks. qs Remove the FRONT STAND COVER ASSY. Sony Confidential

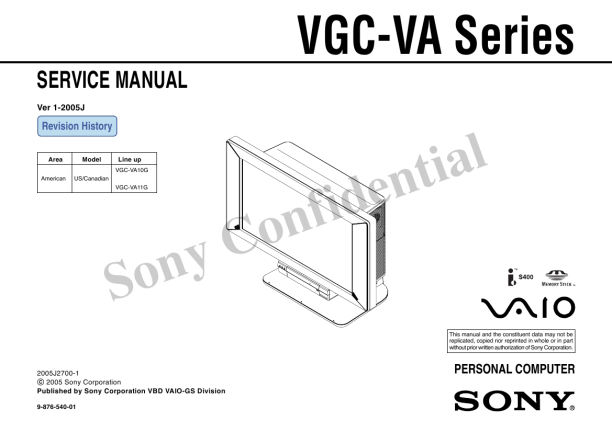

VGC-VA Series (AM)
1�25
|
|
|
> |
|
|
